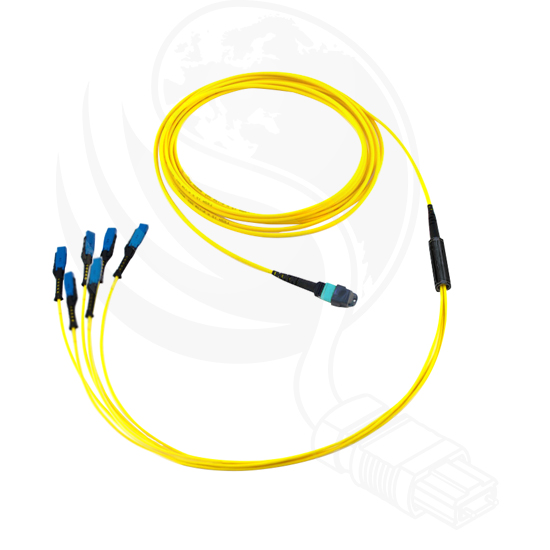

12 & 24 Fibre Breakout Harness Cable – MTP/MDC

CONNECTOR TYPE B	MTF (MTP Female), MTM (MTP Male), MTFA (Female APC), MTMA (MTP Male APC)
CONNECTOR TYPE A	MD (MDC)
CABLE STRUCTURE	R Round Drop Cable, F Flat Cable, A Steel Armoured
FIBRE TYPE	S2 (OS2), M3 (OM3), M4 (OM4)
FIBRE COUNT	12, 24
CABLE COLOUR	YEL Yellow, BLK Black, WHT White, AQU Aqua, PRL Purple
LENGTH (M)	1, 2, 3, 4, 5, 10, 12, 15

Təhlükəsiz alış-veriş

Tətbiq sahəsi

Fibre Types	OM3, OM4, OS2
Polarity	C (standard). A and B available
Fibre Capacity	12 or 24
Fibre Construction	Dry loose tube micro cable
Outer Diameter	3.0mm (single sheath), 4.5mm (dual sheath)
End 1	MTP® ELITE 12/24 Fibre Connector
End 2	MDC duplex low loss connector (x6/12)
Insertion Loss Across Cable	< 0.35 dB + cable loss
Cable Material	LSZH
Weight kg/km	8 (single sheath), 23 (dual sheath)
Min Bend Radius	10 x (outside diameter)
Max Crush Resistance	150 N/dm (single sheath), 300N/dm (dual sheath)
