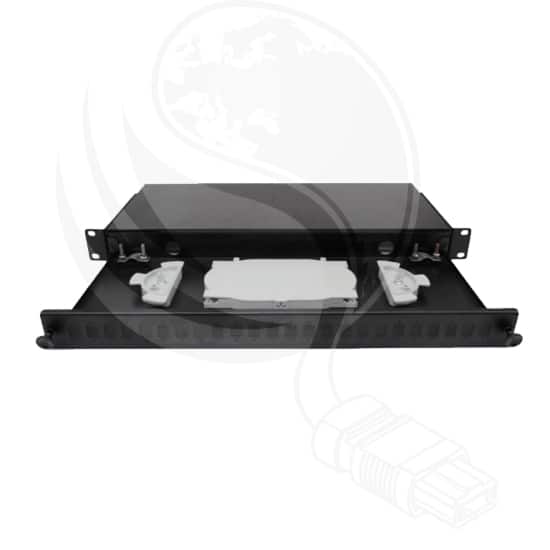

1U Easy Sliding Standard Patch Panel – Model 03 – 96 FO
| ADAPTER TYPE | FC, LC, ST, SC |
|---|---|
| POLISH TYPE | A Angled, U Flat, Fibre management only |
| MODE | SX, DX, QD |
| FIBRE TYPE | M Multimode, S Single-mode, E Empty, A1 G657A1, A2 G657A2, B3 G657B3, M1 OM1, M2 OM2, M3 OM3, M4 OM4, M5 OM5, S2 OS2 |
| FIBRES/PORTS | 12, 24, 48, 96 |
| EXTRA OPTIONS | F Fibre Management, P Pigtails, A Adapters only |
Tətbiq sahəsi
- Telecommunications subscriber loop
- FTTH
- LAN/WAN and metro networks
- CATV Networks
- Other applications in Fibre optical systems
Texniki
| Dimension | 12 SC SX / 12 ST SX / 12 FC SX / 12 SC DX / 12 LC DX / 12 LC QD 24 SC SX / 24 ST SX / 24 FC SX / 24 SC DX / 24 LC DX / 24 LC QD |
| Pigtail max | 96 LC QD |
| Net Weight | 1.65 kgs (24SC) |
| Material | Cold Rolled Sheet 1.0mm |
| Thickness | 1.2 mm |
| Package | 5 Pcs/Carton (24SC) |
