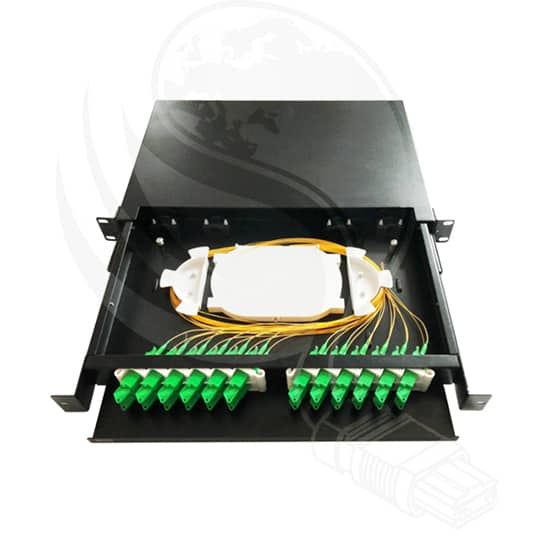

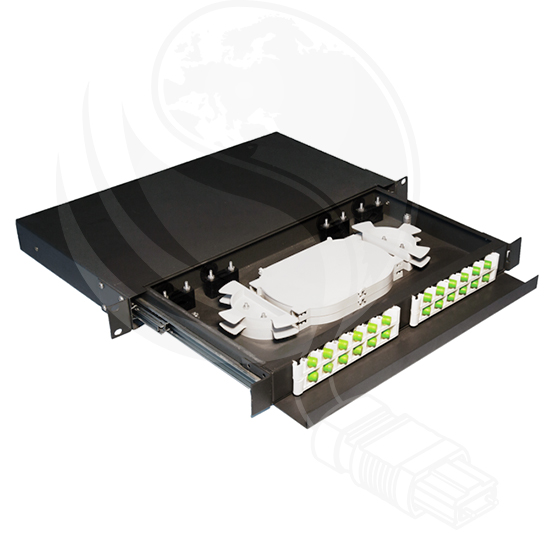

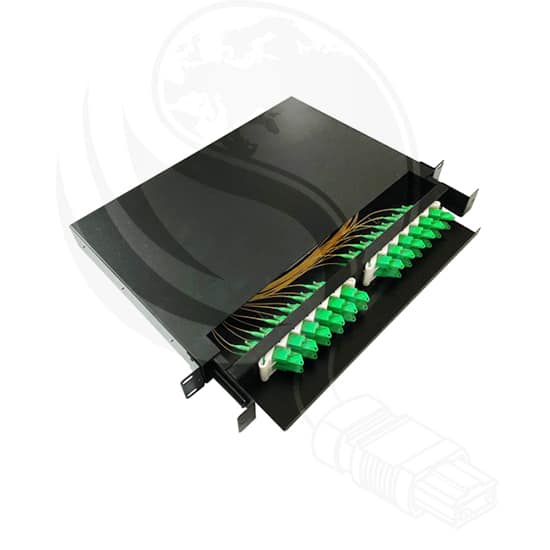

1U Sliding On Rail Modular Patch Panel – Model 03 – 48 FO

TYPE	RM (Sliding on Rail Modular)
UNIT	1U
MODEL	3
ADAPTER TYPE	SC, LC, FC, ST, E2
POLISH TYPE	A Angled, U Flat
MODE	SX, DX
FIBRE TYPE	M Multimode, S Single-mode, E Empty, A1 G657A1, A2 G657A2, B3 G657B3, M1 OM1, M2 OM2, M3 OM3, M4 OM4, M5 OM5, S2 OS2
FIBRES/PORTS	12, 16, 24, 32, 48
EXTRA OPTIONS	F Fibre Management, P Pigtails, A Adapters only

Təhlükəsiz alış-veriş

Tətbiq sahəsi

Adapter Types	E2000, ST, SC, FC, LC
Height	1U
Weight (kg)	1.7
Dimensions	430 x 300 x 1U
Max Capacity	48 fibres
Max Quantity of Splice Tray	2 pcs; 12 cores
Optical Fibre Winding Radius	≥40mm
Fibre Length Left In Tray	≥1.6m
Working Temperature	– 400C ~ + 600C
Lateral Pressure-Resistance	500N
Shock-Resistance	750N
Material	Cold-Rolled Steel (Powder Coated)
