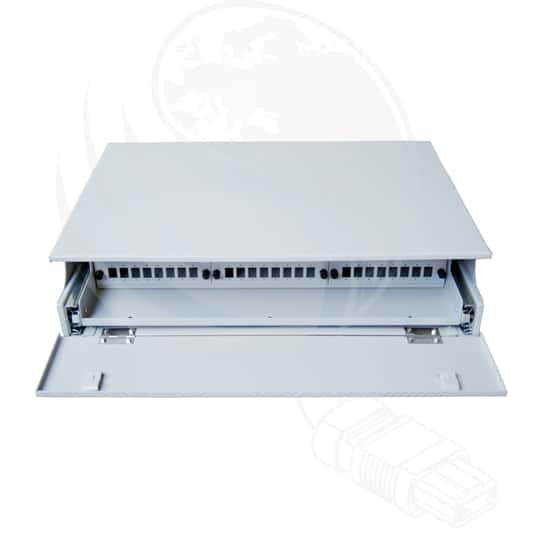

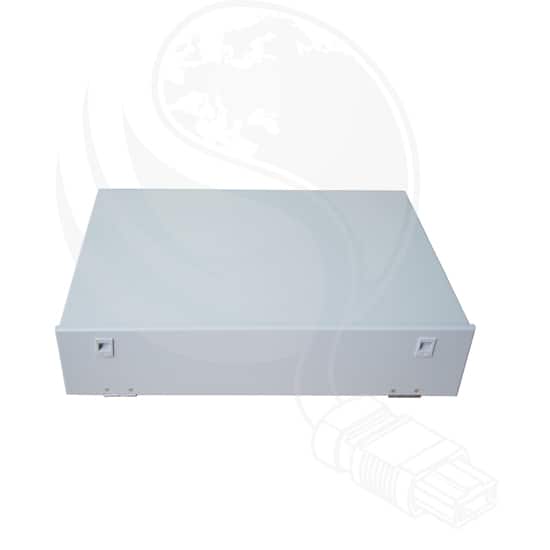

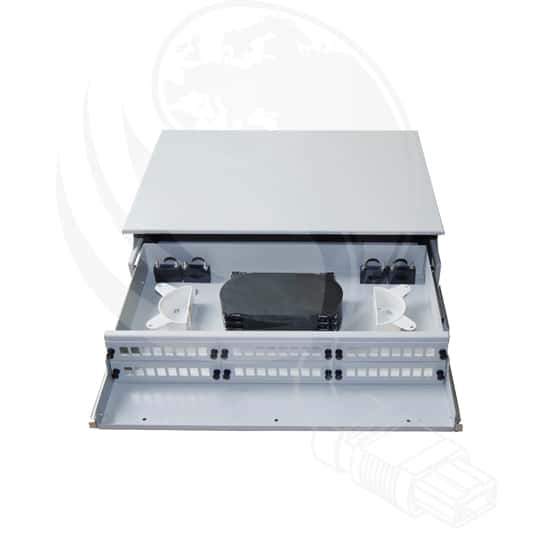

2U Sliding On Rail Modular Patch Panel – Model 02 – 96 FO
| TYPE | RM |
|---|---|
| UNIT | 2U |
| MODEL | 2 |
| ADAPTER TYPE | SC, LC |
| POLISH TYPE | A Angled, U Flat, Fibre management only |
| MODE | SX, DX |
| FIBRE TYPE | M Multimode, S Single-mode, E Empty, A1 G657A1, A2 G657A2, B3 G657B3, M1 OM1, M2 OM2, M3 OM3, M4 OM4, M5 OM5, S2 OS2 |
| FIBRES/PORTS | 48, 96 |
| EXTRA OPTIONS | F Fibre Management, P Pigtails, A Adapters only |
Tətbiq sahəsi
- Data and server racks
Texniki
| Height | 2U |
| Dimensions | 438 x 326.5 x 99.7mm |
| Adapter Port | SC simplex, LC Duplex |
| Max. Capacity | 96 fibres |
| Max. Qty of Splice Tray | 6 trays |
| Splice Tray Max. Capacity | 8 fibres |
| Material | Cold-Rolled Steel |
| Rack Width | 19” |
