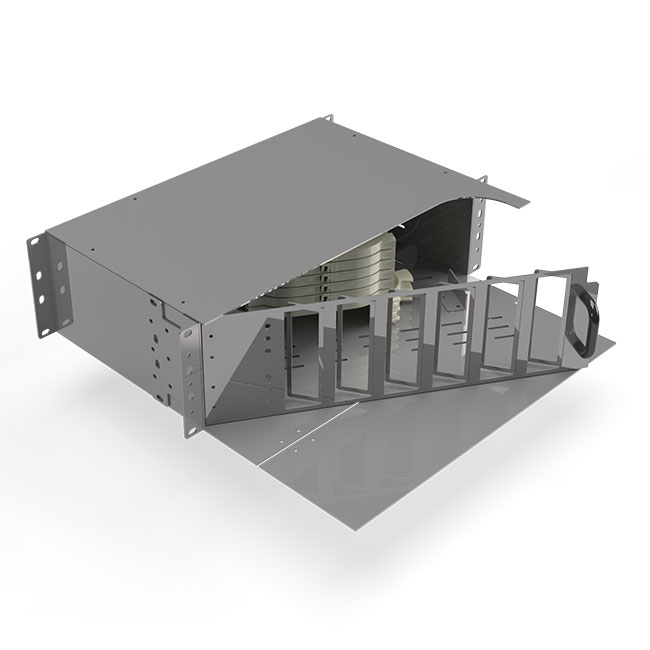

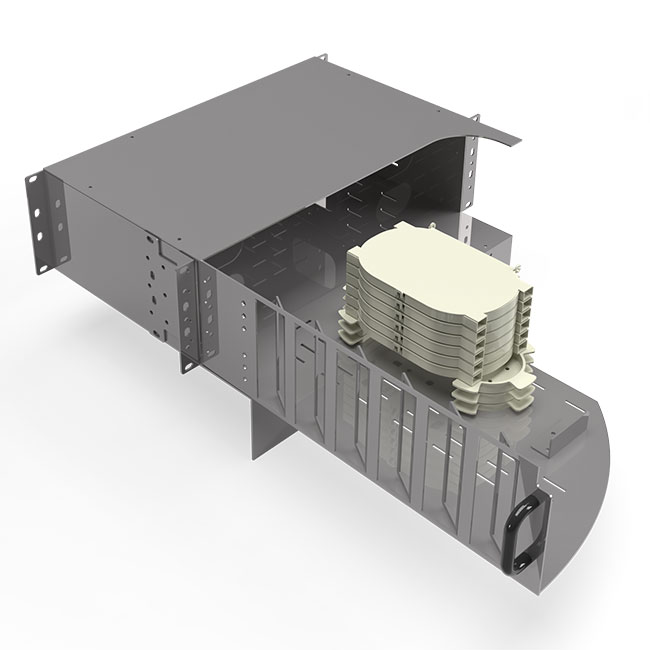

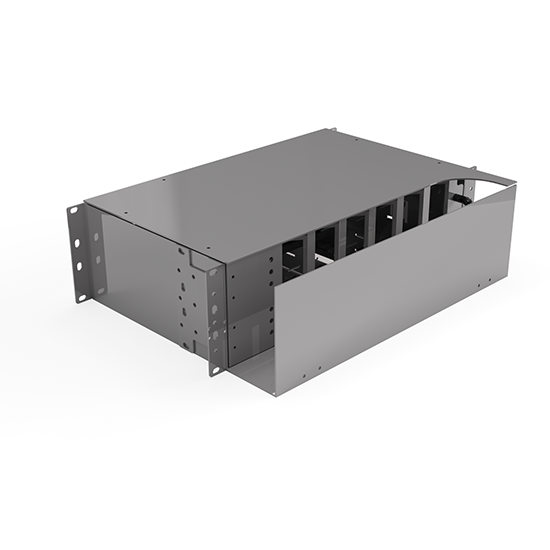

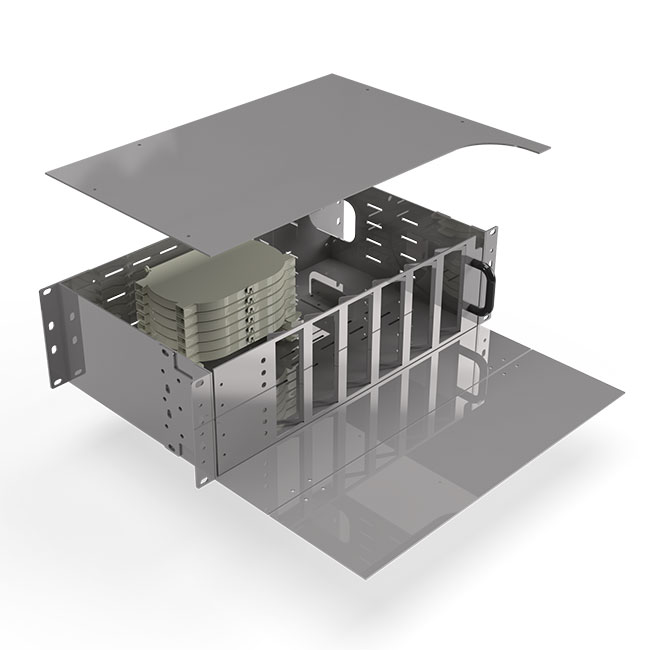

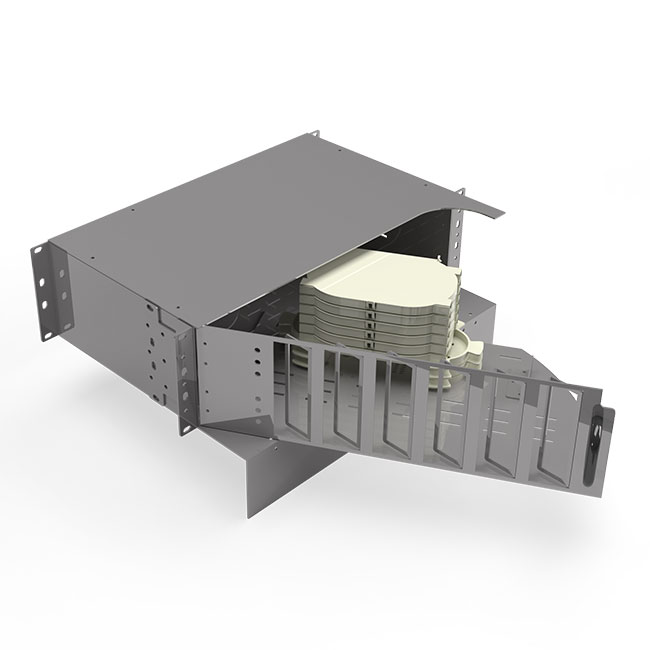

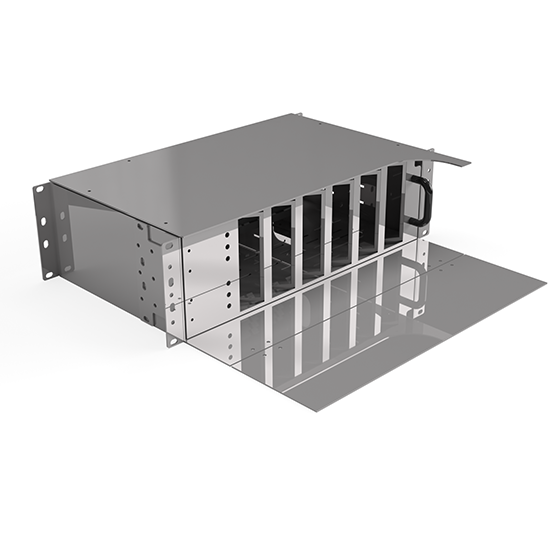

3U Pivoting Standard Patch Panel – Model 02 – 144 FO

TYPE	PM
UNIT	3U
MODEL	2
ADAPTER TYPE	LC, SC, FC
POLISH TYPE	A Angled, U Flat, Fibre management only
MODE	SX, DX
FIBRE TYPE	M Multimode, S Single-mode, E Empty, A1 G657A1, A2 G657A2, B3 G657B3, M1 OM1, M2 OM2, M3 OM3, M4 OM4, M5 OM5, S2 OS2
PORTS/FIBRES	12, 16, 24, 32, 48, 72
EXTRA OPTIONS	F Fibre Management, P Pigtails, A Adapters only

Təhlükəsiz alış-veriş

Tətbiq sahəsi

Adapter Types	SC simplex, LC Duplex
Dimensions mm	675 width × 135 height × 574 depth
Max Capacity	144 SC SX / 144 LC DX
Splice Tray Max Quantity	6 pcs
Splice Tray Max Capacity	24 or 48 fibres
Size	3U
Material	Cold-rolled or stainless steel (as illustrated)
