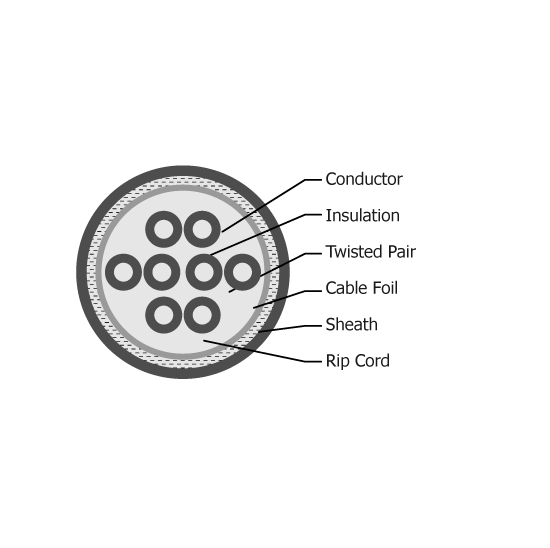

Cat 5E – F/UTP Solid LAN Kabel
| CONSTRUCTION | UUTP, FUTP, SFTP, FFTP, UFTP |
|---|---|
| CATEGORY | C5E |
| SHEATH MATERIAL | HD (High-Density Polyethylene), PV (PVC), LS (LSZH), LD (Low-Density Polyethylene), DJ (Double Jacket PE/PVC), PE (Polyethylene) |
| COLOUR | GRY, PRL, BLK |
| LENGTH (M) | 5, 15, 500, 200, 305, 500 |
| STANDARD | -E Extra Range, -P Platinum |
| ADDITIONAL | OD Outdoor, Blank if Indoor |
Tətbiq sahəsi
- Call centres & Data networks
- LAN Applications
- CCTV
Texniki
| American Wire Gauge (AWG) | 24 | |
| After Tensile Strength (Mpa) | ≥85% of unaged | |
| Minimum Point Thickness (mm) | 0.18 | |
| Cable Laying Length (±mm) | 140 | |
| Jacket | PVC or LSZH | |
| Outer Diameter (±0.2mm) | 5.20 | |
| 100.0-250MHz Delay Skew (ns/100m) | 100 ± 20 | |
| 1.0-250.0MHz Impedance (ohms) | ≤45 | |
| Pair-to-Ground Capacitance Unbalance (pF/100m) | ≤330 | |
| Max. Conductor DC Resistance 20oC (ohms/km) | 93.8 | |
| Test Material | PVC | |
| Before Tensile Strength (Mpa) | ≥13.8 | |
| Aging Elongation (%) | ≥50 of unaged | |
| Aging Condition (oC x hrs) | 100 x 240 | |
