Cat 5E – F/UTP Stranded Kabel

CONSTRUCTION	UUTP, FUTP, SFTP, FFTP, UFTP
CATEGORY	C5E
SHEATH MATERIAL	HD (High-Density Polyethylene), PV (PVC), LS (LSZH), LD (Low-Density Polyethylene), DJ (Double Jacket PE/PVC), PE (Polyethylene)
COLOUR	GRY, PRL, BLK
LENGTH (M)	5, 15, 500, 200, 305
STANDARD	-E Extra Range, -P Platinum
ADDITIONAL	OD Outdoor, Blank if Indoor

Təhlükəsiz alış-veriş

Tətbiq sahəsi

American Wire Gauge (AWG)	26 (0.48mm – 870.16mm)

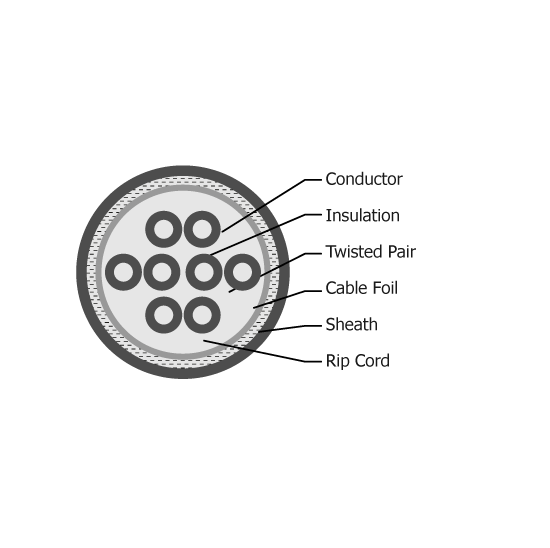

Construction	Shielded 4 twisted pairs
Conductor	Stranded bare copper (7 × 0.16mm)
Conductor diameter	AWG 26 (0.48mm)
Conductor insulation material	Foam skin polyethylene (PE)
Diameter over insulation	0.95 ±0.05mm
Drain wire	Tinned copper, 18 × 0.10mm
Shield	Aluminium/polyester foil
Jacket material	PVC, LSZH
Outer diameter	5.2 ± 0.2mm
Nominal mutual capacitance at 1kHz	50nF/km
Maximum conductor DCR	135Ohm/km
NVP – Nominal Velocity of propagation	0.75c
SKEW -propagation delay difference (100MHz)	Typical ≥ 40ns/100m
Impedance 1-100MHz	100 ±15Ohm
Temperature range – operation	-20°C to +60°C
Minimum bending radius – operation/installation	20mm / 40mm
Maximum pulling tension	80N
