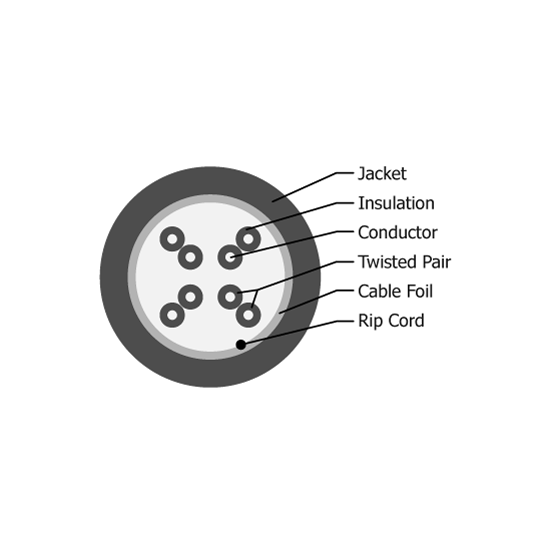

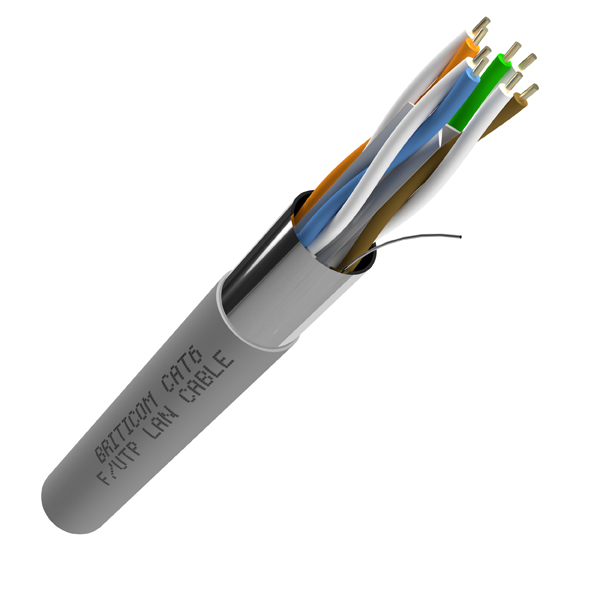

Cat 6 – F/UTP Solid LAN Kabel

CONSTRUCTION	UUTP, FUTP, SFTP, FFTP, UFTP
CATEGORY	C6
SHEATH MATERIAL	HD (High-Density Polyethylene), PV (PVC), LS (LSZH), LD (Low-Density Polyethylene), DJ (Double Jacket PE/PVC), PE (Polyethylene)
COLOUR	GRY, PRL, BLK, RED, ORN, BLU
LENGTH (M)	5, 15, 200, 305, 500
STANDARD	-E Extra Range, -P Platinum
ADDITIONAL	OD Outdoor, Blank if Indoor

Təhlükəsiz alış-veriş

Tətbiq sahəsi

American Wire Gauge (AWG)	23
After Tensile Strength (Mpa)	≥85% of unaged
Minimum Point Thickness (mm)	0.20~0.21
Cable Laying Length (±mm)	140
Jacket	PVC (inner), LLDPE (outer)
Outer Diameter (±0.2mm)	7.20
100.0-250MHz Delay Skew (ns/100m)	100 ± 25
1.0-250.0MHz Impedance (ohms)	100+-15
Pair-to-Ground Capacitance Unbalance (pF/100m)	≤330
Max. Conductor DC Resistance 20oC (ohms/km)	73.2
Test Material	PVC & LLDPE
Before Tensile Strength (Mpa)	≥13.9 (PVC), ≥15 (LLDPE)
Aging Elongation (%)	≥100 (PVC), ≥150 (LLDPE)
Aging Condition (oC x hrs)	100 x 240 (PVC), 100 x 168 (LLDPE)
