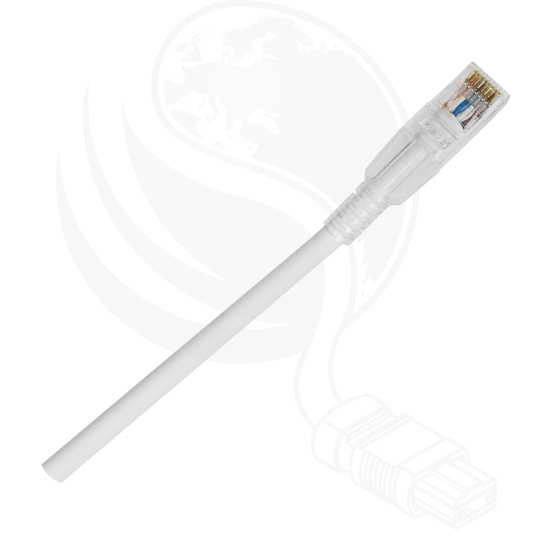

Cat 6 Patch Cord – U/UTP – Secured & Locked

CONSTRUCTION	UUTP, FUTP, SFTP, FFTP, UFTP
CATEGORY	C5E, C6, C6A, C7, C7A, C8
COLOUR	BLK, GRY, WHT, ORN, PRL, GRN
LENGTH (M)	3, 5, 10, 15, 20
MATERIAL	HD (High-Density Polyethylene), PV (PVC), LS (LSZH), LD (Low-Density Polyethylene), DJ (Double Jacket PE/PVC), PE (Polyethylene)
DETAIL	F Flat, A Angled Boot, L Locked, D Light, M Micro size, R Rodent-Resistant, S Self-Tracing, T Tangle-Free, U Ultra-Flat, Blank if no extra detail
STANDARD	-E Extra Range, -P Platinium
ADDITIONAL	OD Outdoor

Təhlükəsiz alış-veriş

Tətbiq sahəsi

Conductor	Stranded AWG 26
Insulations	FO-PE (Foamed Polyethylene)
Overall diameter	5.8 mm ± 0.30 mm
Bending radius	15 x OD
RJ45 connector	3 μ nominal gold flash over 60 μ nickel undercoat contact pins
Contact resistance	20 mΩ
Dielectric strength	2500 VDC for 3 seconds
Insulation resistance	500 mΩ
Voltage	150v
Flame retardance, Smoke emission	IEC 60332-1, IEC 61034
Typical applications	IEEE 802.3: 10BASE-T; 100BASE-T; 1000BASE-T
Norms	ISO/IEC 11801-1; EN-50173; ANSI/TIA-568-C.2; NSI/TIA-568.0-D; EN 60603-7-5, ANSI/TIA/EIA-568-B.2.10
