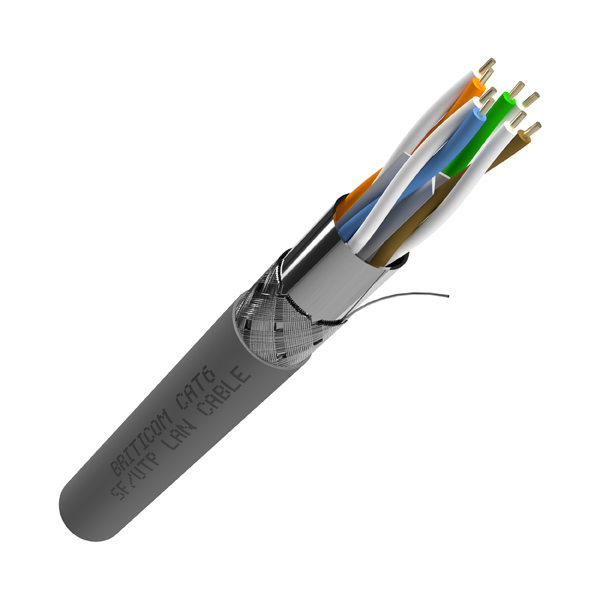

Cat 6 – SF/UTP Solid LAN Kabel
| CONSTRUCTION | UUTP, FUTP, SFUTP, SFTP, FFTP, UFTP |
|---|---|
| CATEGORY | C6 |
| SHEATH MATERIAL | HD (High-Density Polyethylene), PV (PVC), LS (LSZH), LD (Low-Density Polyethylene), DJ (Double Jacket PE/PVC), PE (Polyethylene) |
| COLOUR | GRY, PRL, BLK, RED, ORN, BLU |
| LENGTH (M) | 5, 15, 200, 305, 500 |
| STANDARD | -E Extra Range, -P Platinum |
| ADDITIONAL | OD Outdoor, Blank if Indoor |
Tətbiq sahəsi
- CCTV
- LAN Applications
Texniki
| American Wire Gauge (AWG) | 23 | |

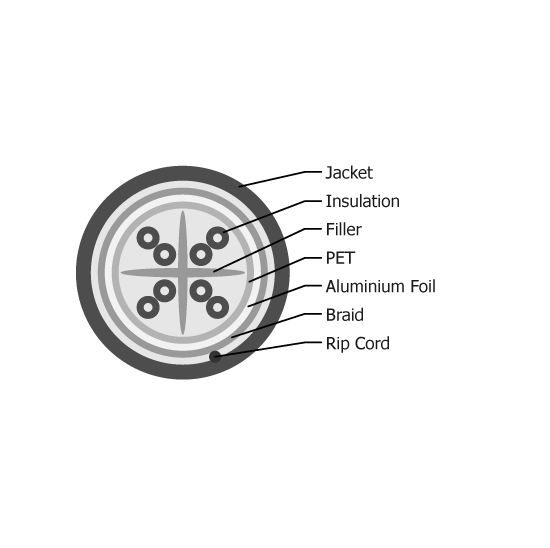

| Material | Conductor material – Solid bare copperConductor insulation – HDPE
Inner shield material – Aluminium foil Outer shielding material – Braided shield, TC Cable jacket – PE |
|
| Insulated conductor diameter | 1.09 ± 0.03 mm | |
| Outer cable diameter | 7.8 ± 0.5 mm | |
| Jacket thickness | 0.65mm ± 0.05 mm | |
| Pulling strength | 110N | |
| Minimum bend-radius | 4 times the outer diameter | |
| Nominal velocity of propagation | 69% | |
| Insulation resistance – MΩ/km | Min. 5000 | |
| Propagation delay skew | Max 45 ns/100m | |
| Impedance 1-250 MHz | 100 ± 15Ω | |
| DC resistance max | 9.38 Ohm/100m | |
