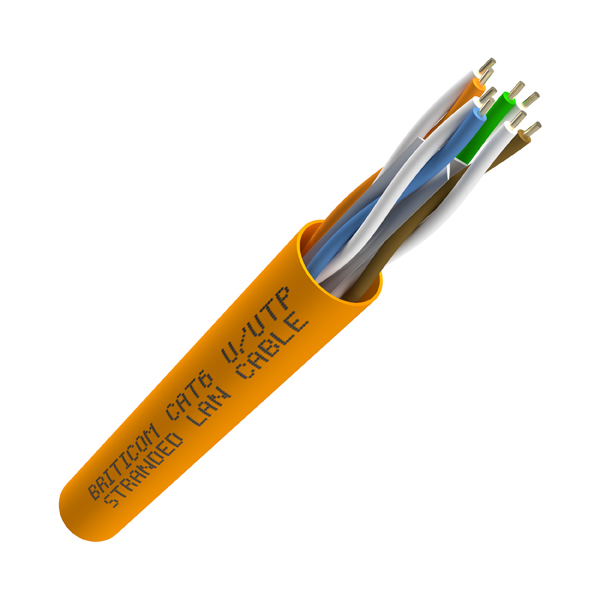

Cat 6 – U/UTP Stranded Kabel
| CONSTRUCTION | UUTP |
|---|---|
| CATEGORY | C6 |
| SHEATH MATERIAL | PE |
| COLOUR | GRY, PRL, BLK, RED, ORN, BLU |
| LENGTH (M) | 5, 15, 200, 305, 500 |
| STANDARD | -P |
| FEATURES (STRANDED) | S |
Tətbiq sahəsi
- Data networks
- LAN Applications
- CCTV
Texniki
| Conforms to | IEEE 802.3; 10Base-T; 100Base-T; 1000Base-T; 10GBase-T standards: ANSI / TIA-568.0-D Standard of 2017; T568.2-D Standard; ISO / IEC 11801 2nd ed. IEC 61156-5 2nd ed.; EN 50173-1; EN 50288-10 RoHS2002/95/EC | |
| Conductor | Bare copper wire | |
| Insulation | PE | |
| Shielding | Aluminium Foil Mylar | |
| Jacket Material | LSZH | |
| Jacket Thickness | 0.65mm | |
| Jacket Diameter | 5.6 + 0.2mm | |
| Conductor Resistance | 7/0.16BC; Max. 148 ohms/km at 20⁰C | |
| Insulation Resistance | Min 10 mega ohms/m at 20⁰C | |
