| Specifications |
ISO/IEC 11801 2nd edition:2002 EN50173:2007 ANSI/TIA/EIA‐568‐B.2 |
| Wiring Specs |
T568A & T568B |
| Dimensions |
16.3mm(W) x 38mm (D) x 21mm (H) |
| Installation Recommendation |
Suits All type of RJ45 Face-Plates & empty RJ45 patch panels or Equipment |

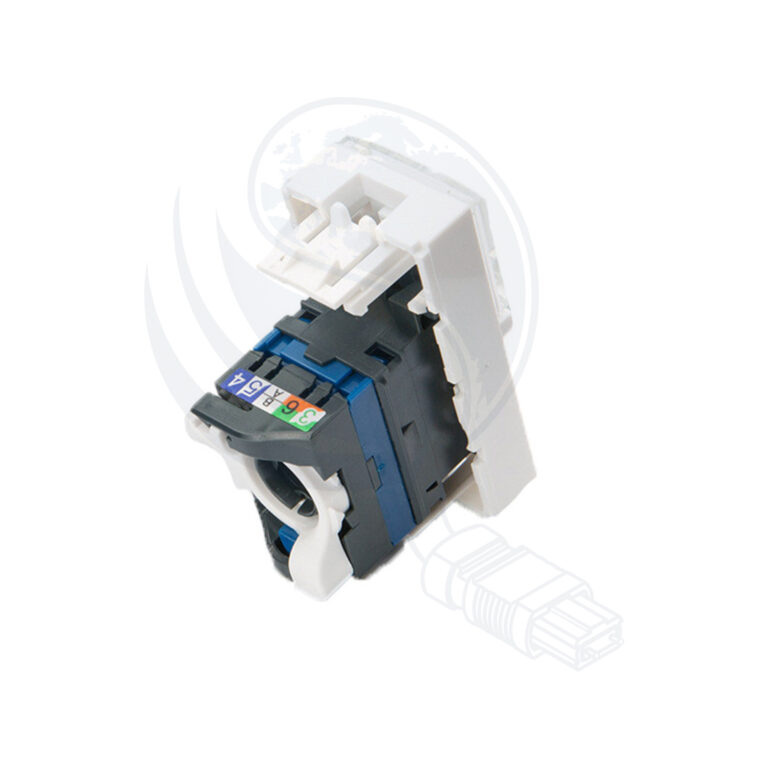

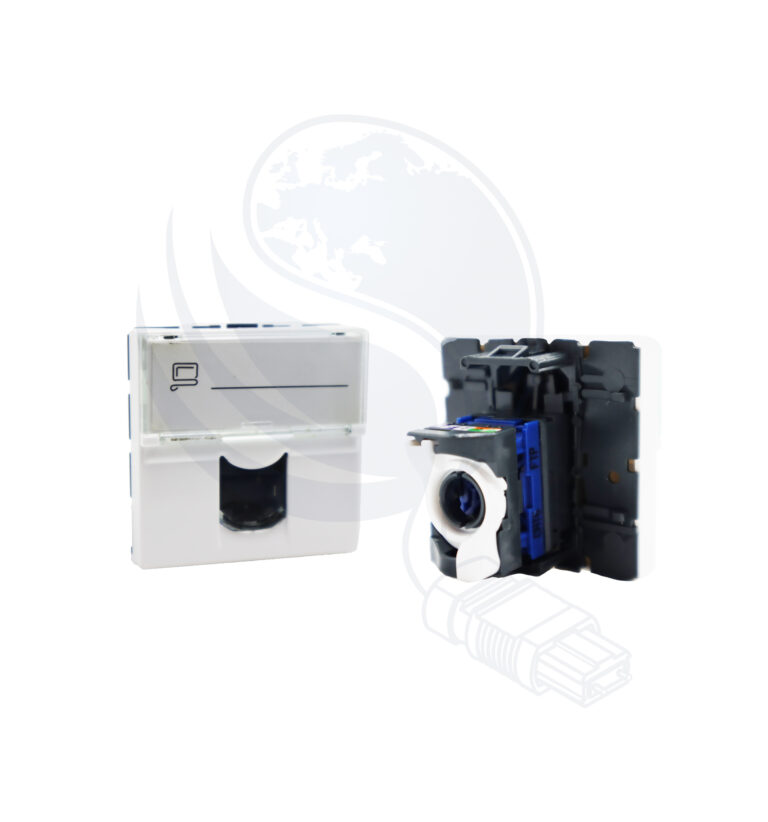

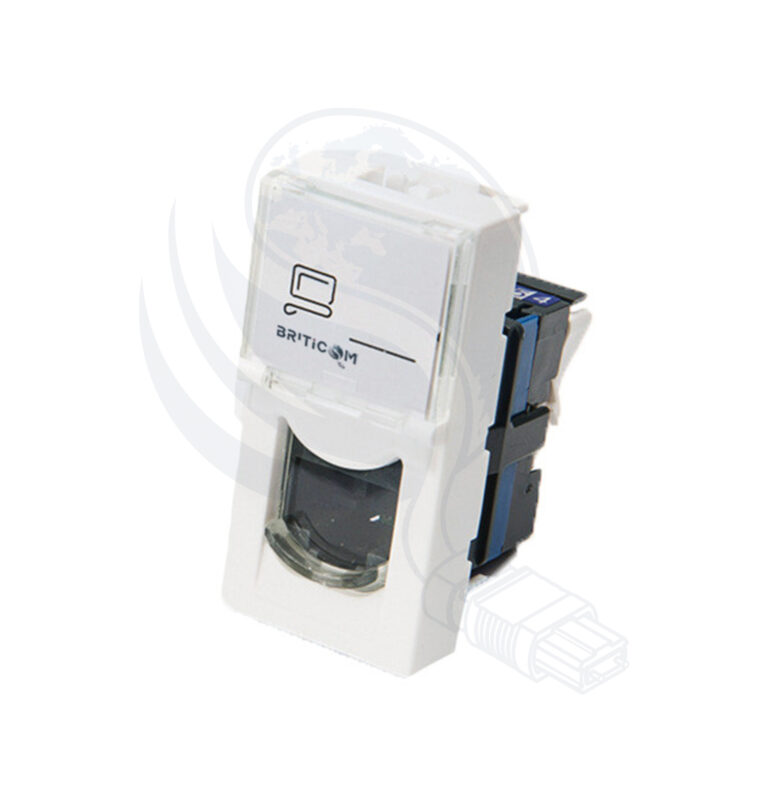

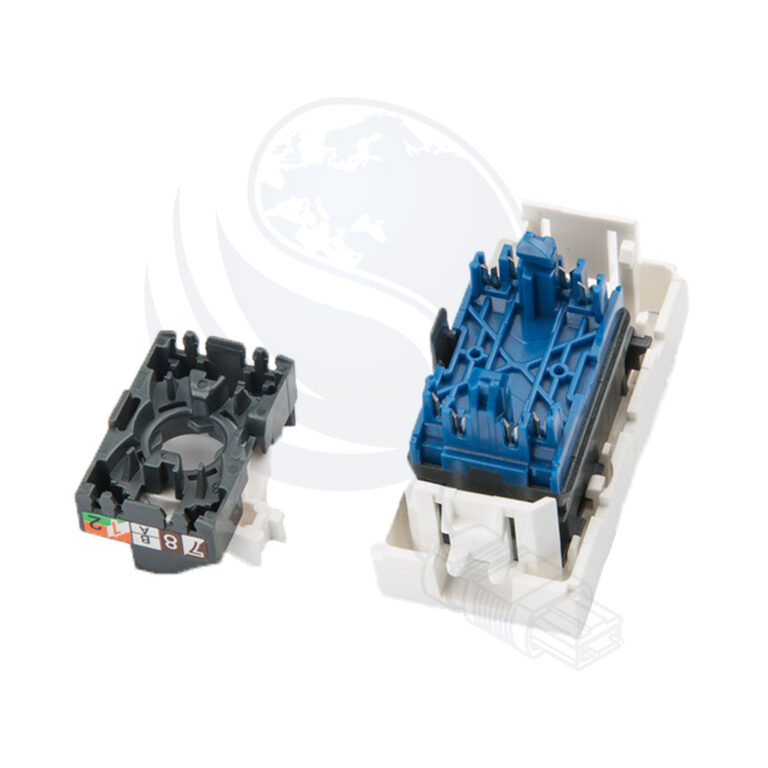

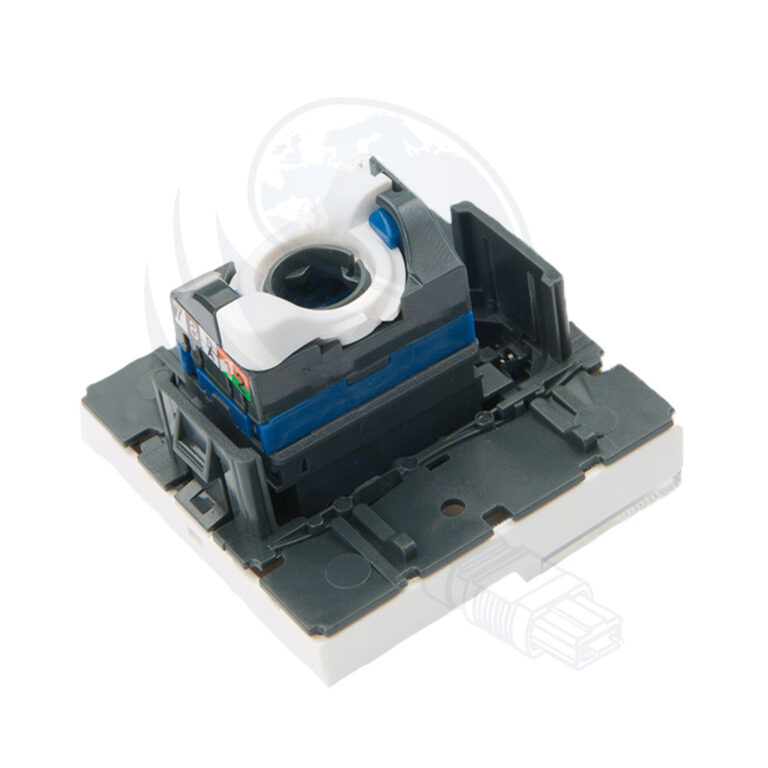

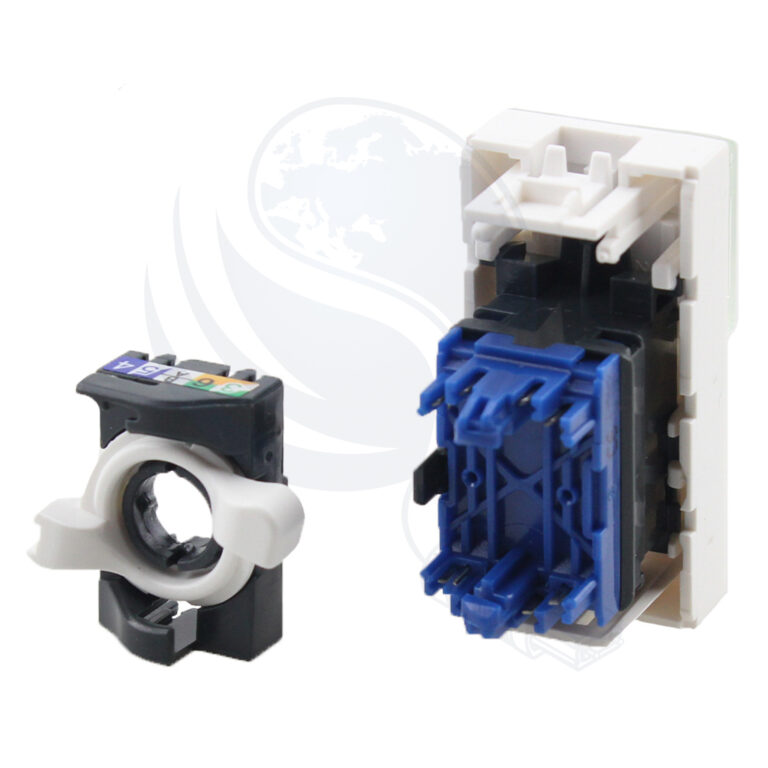

| RJ45 Jack |
Min life 750 insertions |
| RJ45 Jack |
50um Gold Plated contact pins |
| NEXT at 500MHz |
Category 6 39.1dB @250MHz (Power Sum) |
| EL FEXT at 500MHz |
Category 6 27.0dB @250MHz (Power Sum) |
| Storage Temperature Range |
‐40 to +70°C (Power Sum) |
| Operational Temperature Range |
10 to +60°C (Power Sum) |
| Jack Housing |
Zinc Die-Cast alloy fully shielded |
| Front Frame |
80×80 or 80×125 |
| Empty Module |
22.5×45 or 45×45 |
| Insertion Force |
30N Max (IEC 60603-7-5) |
| Rear Support |
Plastic UL94 V0 |
| Colour |
White |
| White Label Space |
Yes |
| Dust Cover |
Yes |

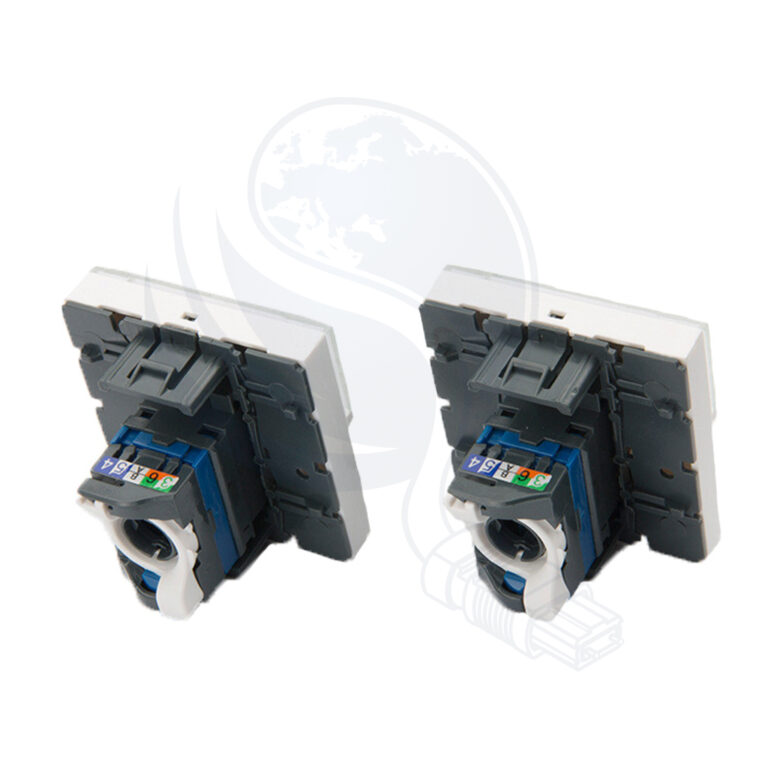

| Number of Ports |
1 ~ 2 (80×80)mm or 1 ~ 4 (80×125)mm |
| Outlet Direction |
Flat / Angled |
