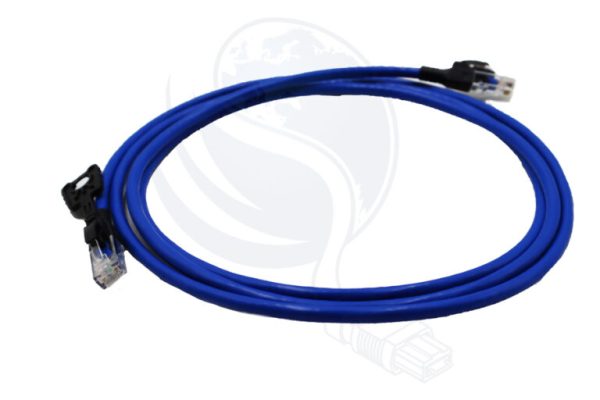

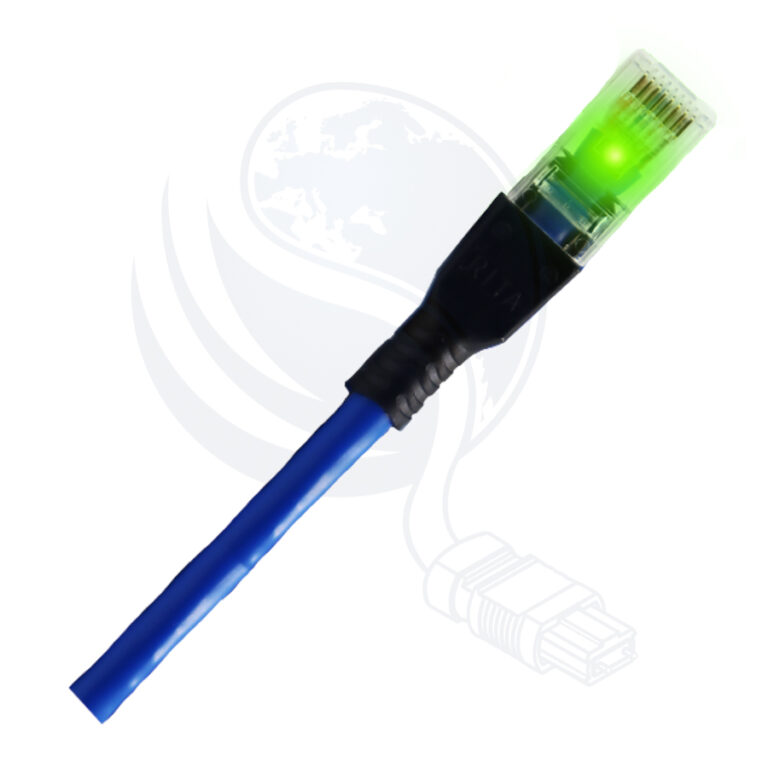

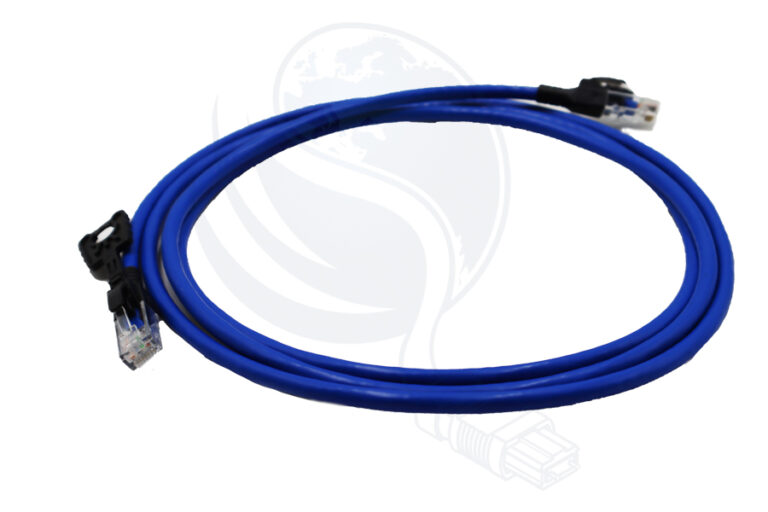

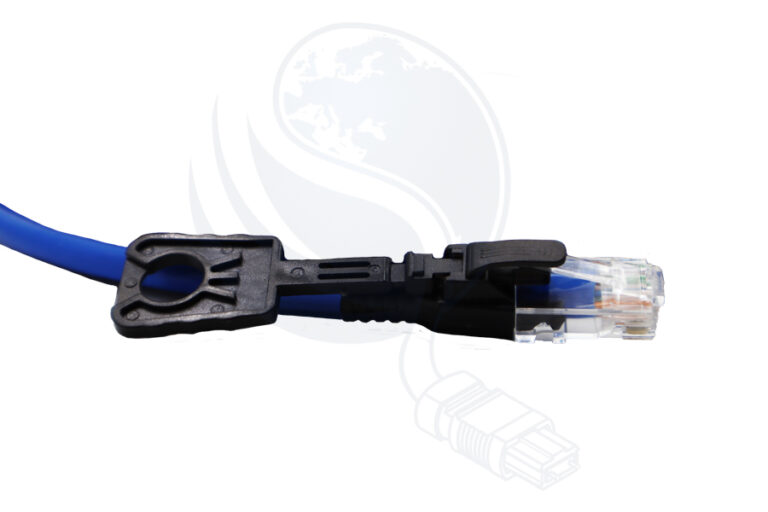

CAT 6 UUTP Lockable & LED Patch Cord Channel Level Testing

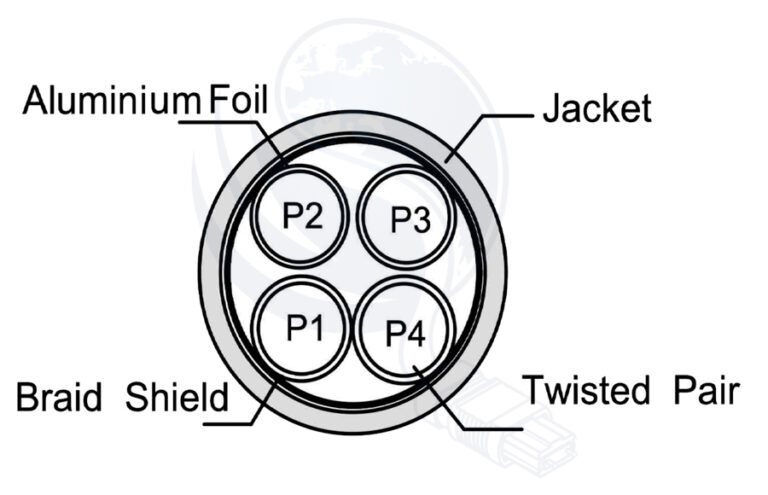

CONSTRUCTION UUTP, FUTP, SFTP, FFTP, UFTP
CATEGORY C5E, C6, C6A, C7, C7A, C8
COLOUR BLK, GRY, WHT, ORN, PRL, GRN
LENGTH (M) 3, 5, 10, 15, 20
MATERIAL HD (High-Density Polyethylene), PV (PVC), LS (LSZH), LD (Low-Density Polyethylene), DJ (Double Jacket PE/PVC), PE (Polyethylene)
DETAIL F Flat, A Angled Boot, L Locked, D Light, M Micro size, R Rodent-Resistant, S Self-Tracing, T Tangle-Free, U Ultra-Flat, Blank if no extra detail
STANDARD -E Extra Range, -P Platinium
ADDITIONAL OD Outdoor, Blank if indoor



Təhlükəsiz alış-veriş
  • Visa Card
  • MasterCard
  • PayPal
  • Apple Pay

Tətbiq sahəsi



  • Məlumat mərkəzi
  • Telecommunication networks
  • LAN applications
  • CATV – Kabel televiziyası
  • CCTV

Texniki



Conductor CAT 6 UTP 26AWG *4P Stranded Cable Jacket
Insulations FO-PE (Foamed Polyethylene)
RJ45 connector 50μ nominal gold flash over 60μ nickel undercoat contact pins
Wiring standard EIA/TIA 586B
Contact resistance 30 mΩ maximum
Dielectric strength 2500 VDC for 3 seconds
Uninsulated resistance 150 MΩ/km minimum
NVP 76%
Flame retardance, Smoke emission IEC 60332-1, IEC 61034
Typical applications IEEE 802.3: 10BASE-T; 100BASE-T; 1000BASE-T
Norms ISO/IEC 11801-1; EN-50173; ANSI/TIA-568-C.2:2009, ANSI/TIA-568.0-D:2017; EN 60603-7-51

Məlumat cədvəli
