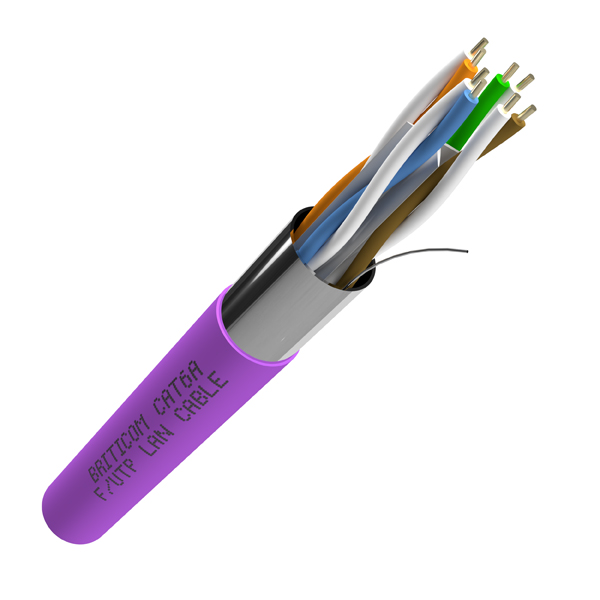

Cat 6a – F/UTP Solid LAN Kabel

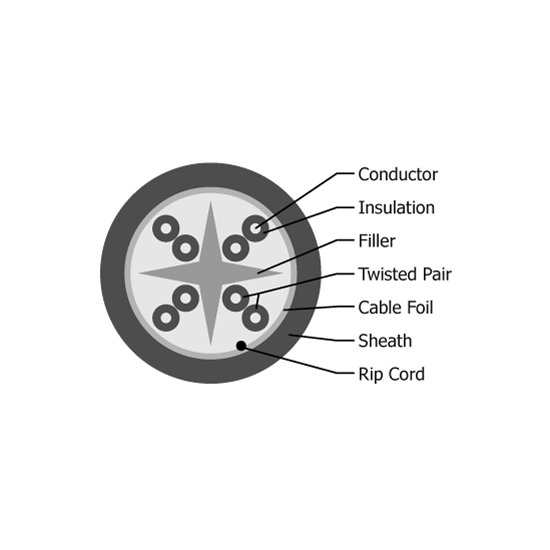

| CONSTRUCTION | UUTP, FUTP, SFTP, FFTP, UFTP |
|---|---|
| CATEGORY | C6A |
| SHEATH MATERIAL | HD (High-Density Polyethylene), PV (PVC), LS (LSZH), LD (Low-Density Polyethylene), DJ (Double Jacket PE/PVC), PE (Polyethylene) |
| COLOUR | GRY, PRL, BLK, RED, ORN, BLU |
| LENGTH (M) | 5, 15, 200, 305, 500 |
| STANDARD | -E Extra Range, -P Platinum |
| ADDITIONAL | OD Outdoor, Blank if Indoor |
Tətbiq sahəsi
- Data centre & Telecommunication networks
- LAN Applications
- CATV – Kabel televiziyası, CCTV
Texniki
| American Wire Gauge (AWG) | 23 |
| After Tensile Strength (Mpa) | >=85% of unaged |
| Minimum Point Thickness (mm) | 0.27 |
| Cable Laying Length (±mm) | 140 |
| Jacket | PVC or LSZH |
| Outer Diameter (±0.2mm) | 7.20 |
| 100.0-250MHz Delay Skew (ns/100m) | 100 ± 22 |
| 1.0-250.0MHz Impedance (ohms) | <=45 |
| Pair-to-Ground Capacitance Unbalance (pF/100m) | <=330 |
| Max. Conductor DC Resistance 20oC (ohms/km) | 73.2 |
| Test Material | PVC |
| Before Tensile Strength (Mpa) | >=13.8 |
| Aging Elongation (%) | >=50% of unaged |
| Aging Condition (oC x hrs) | 100 x 240 |
