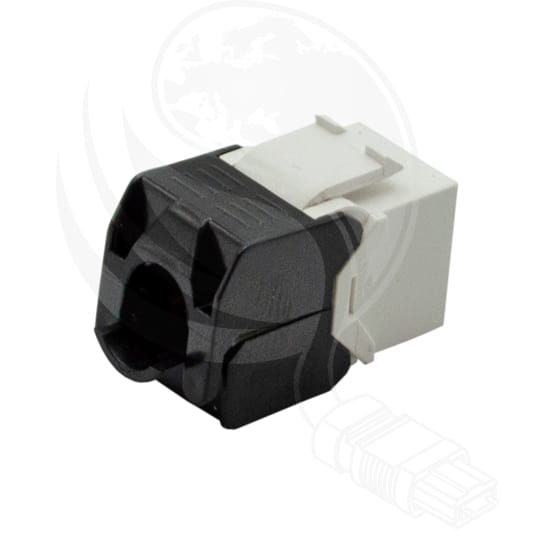

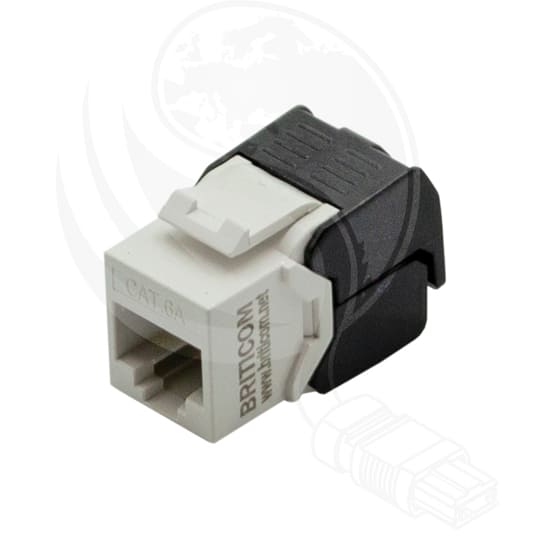

Cat 6A Keystone Jack – UTP Tool-Free 180°
| CONSTRUCTION | UTP, STP |
|---|---|
| CATEGORY | C6A |
| TYPE | KJ (Keystone Jack), IC (Inline Coupler), TJ (Tool Free KSJ), PT (Pass-Through), WJ (Waterproof KSJ Coupler), 36 (360-degree), LJ (Locked), SJ (Shuttered), SL (Shuttered & Locked), TL (TF and locked), TS (TF and shuttered) |
| JACK STYLE (DEGREE) | 180, 90 |
| COLOUR | SLV, BLK, GRY, WB |
| STANDARD | -E (Extra Range), -P (Platinum) |
| ADDITIONAL | OD (Outdoor), Blank if Indoor |
Tətbiq sahəsi
- POTS. T1&Tq fractional
- 52/155 Mbps ATM (ATM Forum)
- ASDN basic and primary rate
- 100 BASE-T4 (Fast Ethernet)
- 10 Gbps Ethernet
- 1 Gbps Ethernet (IEEE802.3)
- 100 Mbps TP-PMD
- 100 BASE-T (Fast Ethernet)
- 10 BASE-T (IEEE802.12)
- 100 VG-Any LAN (IEEE802.12)
Texniki
| Insertion Life | 750 cycles minimum |
| IDC Life | 200 times (22-26 AWG solid wire) minimum |
| Contact Material | Phosphor Bronze, Gold Plating (0.5mm) |
| IDC Material | Phosphor Bronze stamp pin (0.35mm) |
| Conformance | ANSI/TIA-568-C.2:2009, ANSI/TIA-568.0-D:2017, ISO/IEC 11801:2002, RoHS |
