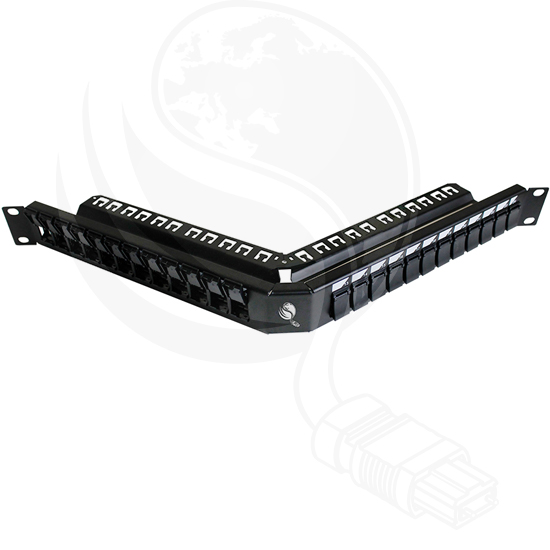

Cat 6a Patch Panel – STP – KSJ – V-Shaped Shuttered

CONSTRUCTION	UTP (UTP), STP (STP)
CATEGORY	C5E, C6, C6A, C7, C8
PRODUCT	PP (IDC/PCB Panel), KP (KSJ Panel), VP (V-Shaped), FP (Foldable), FV (Foldable V-Shaped), SP (Shuttered Ports), CF (Coloured Front), CS (Coloured Shuttered), MF (Modular Flat), MV (Modular V-Shaped), LT (Light-Tracing), IG (Intelligent), IV (Intelligent V-Shaped), KV (KSJ V-shaped), KVS (KSJ V Shuttered)
PORT DENSITY	1-24, 24, 48
COLOUR	BLK
UNIT	1U, 2U, 3U, 4U
ADDITIONAL	-E (Extra), -P (Premium)

Təhlükəsiz alış-veriş

Tətbiq sahəsi

Norms	ISO/IEC 11801 2nd Ed., EN 50173-1, ANSI/TIA-568-C.2:2009, ANSI/TIA-568.0-D:2017, 802.3af, 802.3at PoE+
Installation	Cable installation via LSA strips, colour coded according to EIA/TIA 568 A & B
Housing material	1.5 mm galvanic cold rolled steel, acc. to EN1.4301, UNS S30400, AISI 304 and LMSAD110
RJ45 female material	ABS UL 94V-0
RJ45 female contact	Tinned phosphor bronze, 0.5 μ gold-plated contact
LSA termination clamp	Krone LSA+, UL 94V-2, zinc plated phosphor bronze
Conductor plate	FR4, UL 94V-0
Insertion force	30N max. (IEC 60603-7-5)
Mating cycles female	> 750 acc. to ISO/IEC 11801, IEC 60603-7-5
Clamp	> 200 acc. to ISO/IEC 11801, IEC 60603-7-5
IDC wire size	22 – 26 AWG solid and stranded conductor
Insulation & Contact resistance	> 500 MOhm & < 20 MilliOhm
Dielectric strength	1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
