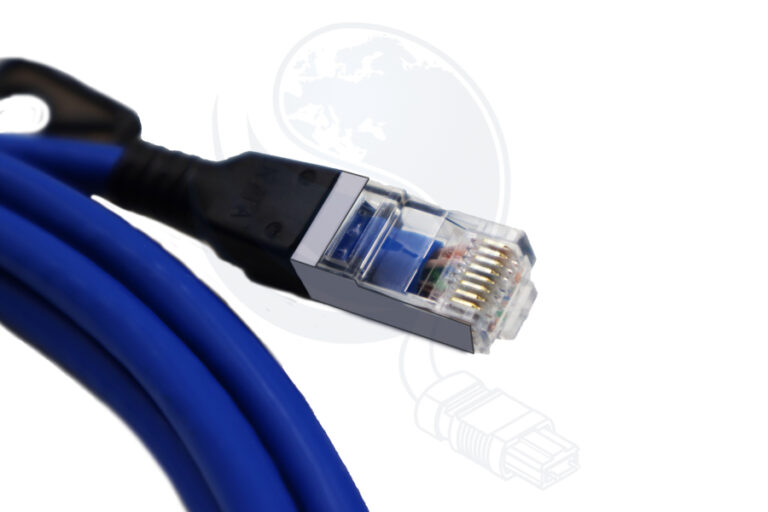

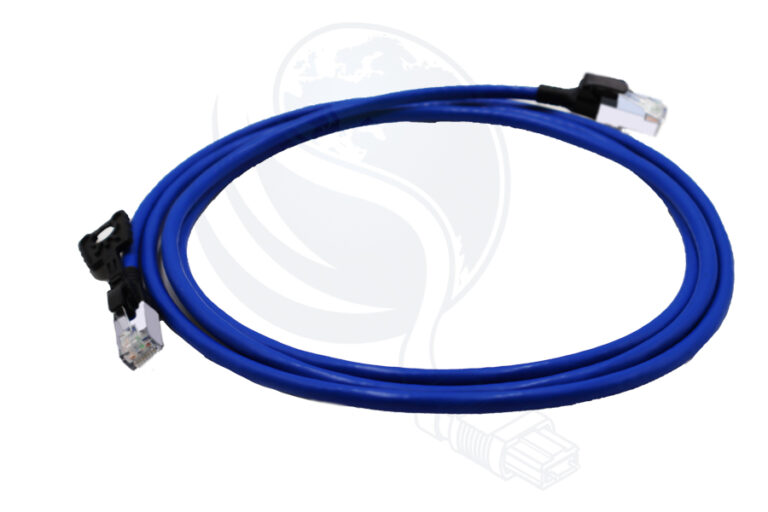

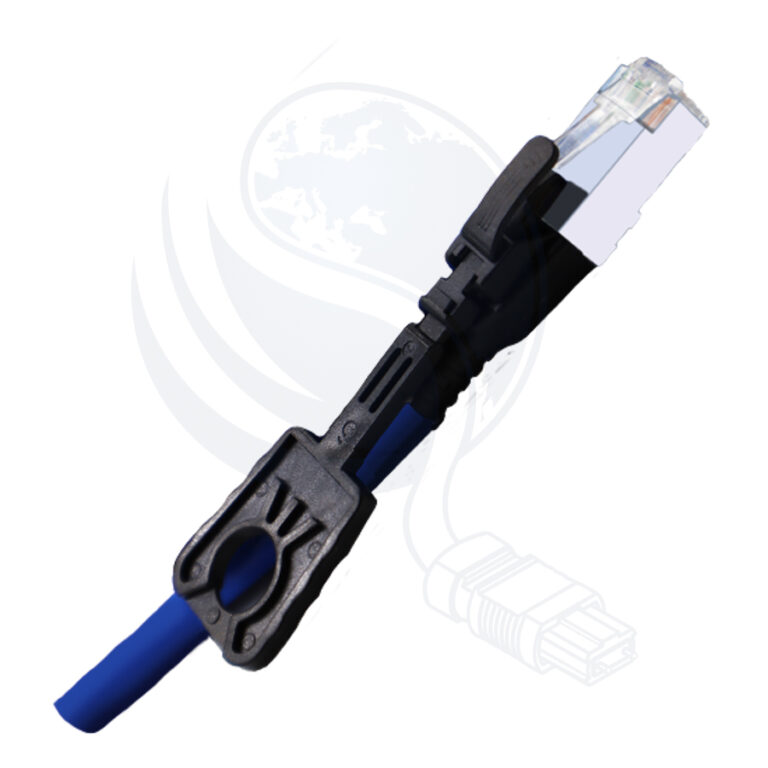

CAT 6A SFTP Lockable Patch Cord Channel Level Testing Platinum

CONSTRUCTION	UUTP, FUTP, SFTP, FFTP, UFTP
CATEGORY	C5E, C6, C6A, C7, C7A, C8
COLOUR	BLK, GRY, WHT, ORN, PRL, GRN
LENGTH (M)	3, 5, 10, 15, 20
MATERIAL	HD (High-Density Polyethylene), PV (PVC), LS (LSZH), LD (Low-Density Polyethylene), DJ (Double Jacket PE/PVC), PE (Polyethylene)
DETAIL	F Flat, A Angled Boot, L Locked, D Light, M Micro size, R Rodent-Resistant, S Self-Tracing, T Tangle-Free, U Ultra-Flat, Blank if no extra detail
STANDARD	-E Extra Range, -P Platinium
ADDITIONAL	OD Outdoor, Blank if indoor

Təhlükəsiz alış-veriş

Tətbiq sahəsi

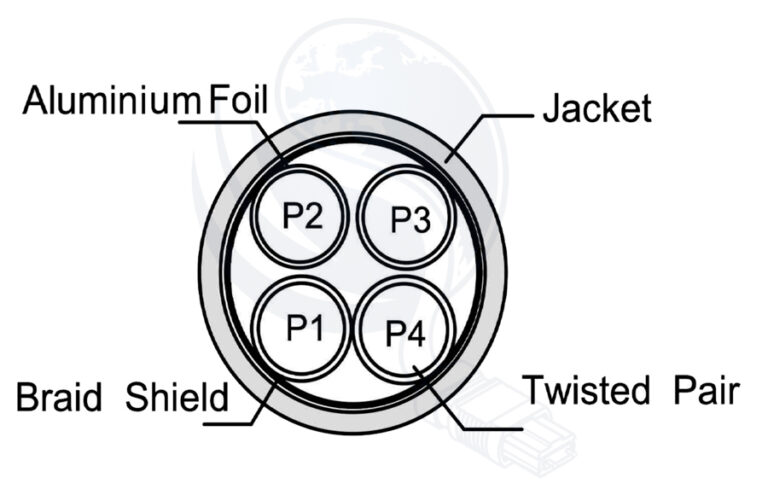

Conductor	CAT 6A S/FTP 26AWG(7/0.16)*4P Stranded Cable Jacket, OD: 6.2±0.2mm Braid: Aluminium
Insulations	FO-PE (Foamed Polyethylene)
Overall diameter	5.7 mm ± 0.30 mm
Bending radius	15x OD
RJ45 connector	50μ nominal gold flash over 60μ nickel undercoat contact pins
Wiring standard	EIA/TIA 586B
Contact resistance	30 mΩ maximum
Dielectric strength	2500 VDC for 3 seconds
Uninsulated resistance	150 MΩ/km minimum
NVP	76%
Flame retardance, Smoke emission	IEC 60332-1, IEC 61034
Typical applications	IEEE 802.3: 10BASE-T; 100BASE-T; 1000BASE-T
Norms	ISO/IEC 11801-1; EN-50173; ANSI/TIA-568-C.2:2009; ANSI/TIA-568.0-D:2017; EN 60603-7-51
