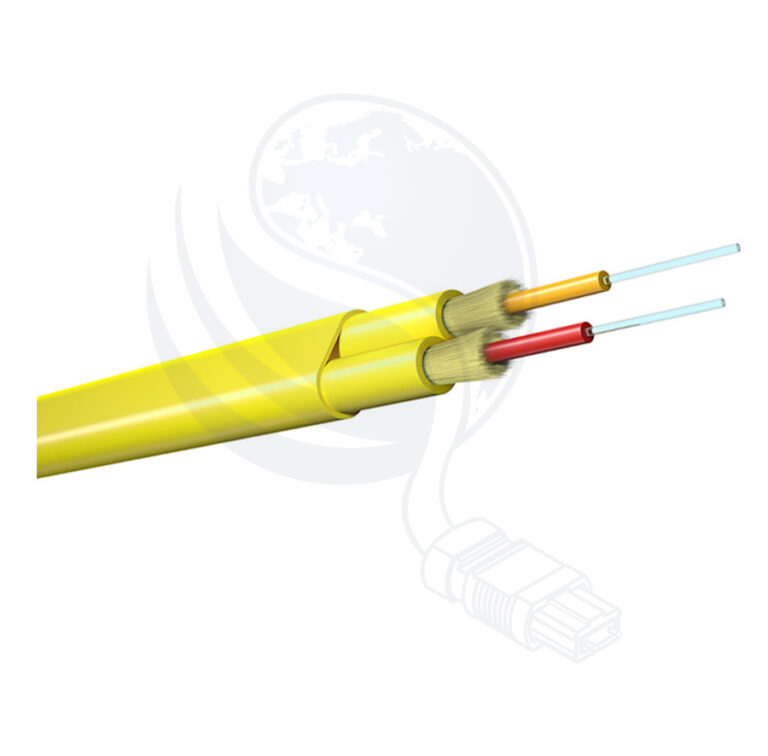

Fiber Optik Patch Kordlar – Flat Duplex OS2
| CONNECTOR TYPE A | ST, SC, LC, FC, E2 |
|---|---|
| CONNECTOR TYPE B | ST, SC, LC, FC, E2 |
| CAPACITY | SX, DX, QD |
| FIBRE TYPE | A1 (G657A1), A2 (G657A2), B3 (G657B3), M1 (OM1), M2 (OM2), M3 (OM3), M4 (OM4), M5 (OM5), S2 (OS2) |
| COLOUR | AQU, BEG, BLK, BLU, GRN, GRY, ORN, PRL, RED, WHT, YEL |
| LENGTH (M) | 1, 2, 3, 4, 5, 10, 15, 20, 100 |
| OPTIONS | /UB Unibooted, /LK Locked, /SB Short Boot, /AB Angled, /LKU Locked & Uniboot, /AU Angled Uniboot, Blank |
Tətbiq sahəsi
- Telecommunication networks
- Data centres
- 1-10 Gb/s şəbəkələr üçün
- CATV – Kabel Televiziyası
- FTTH
Texniki
| Details | Unit | Value |
| Crush | N/100mm | 1000 |

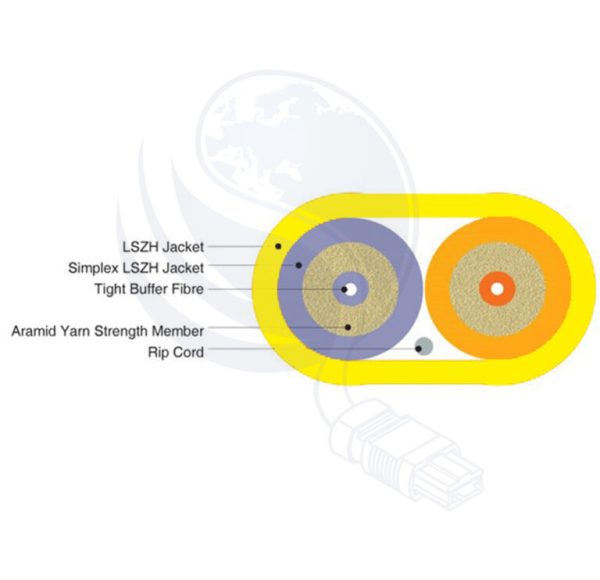

| Strength Member | Material | Aramid |
| Nominal Outer Dimension | mm | 3.0*5.0 |
| Maximum Tensile Load (installation) | N | 250 |
| Maximum Tensile Load (installed) | N | 125 |
| Maximum Bend Radius (installation) | Times Diameter | 20 |
| Maximum Bend Radius (installed) | Times Diameter | 10 |
| Fire Performance | – | LSZH |
| Drum Length | km | 2 |
| Nominal Weight | kg/km | 11 |
| Fibre Count | n | 2 |
| Storage Temperature | °C | -20 to 60 |
| Installation Temperature | °C | -5 to 50 |
| Operating Temperature | °C | -20 to 60 |
| Zero Dispersion Wavelength (nm) | 1312 ± 22 | |
| Attenuation (dB/hm) | ≤ 0.32 @ 1310nm / ≤ 0.18 @ 1550m | |
