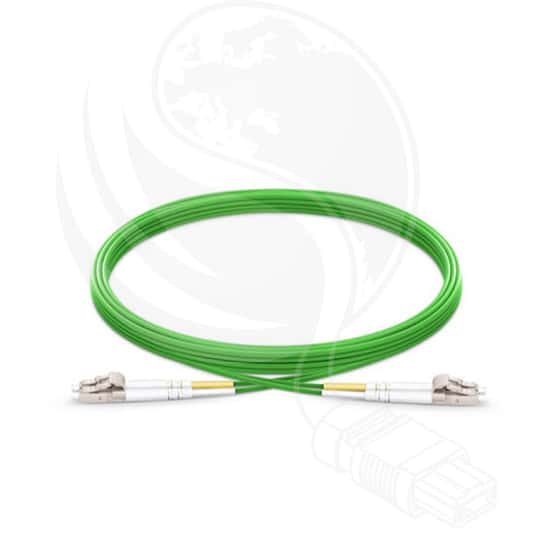

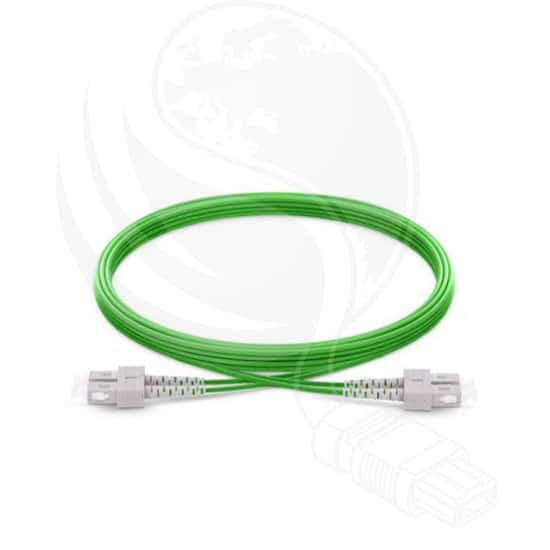

Fiber Optik Patch Kordlar – Multimode OM5

CONNECTOR TYPE A	ST, SC, LC, FC, E2
CONNECTOR TYPE B	ST, SC, LC, FC, E2
CAPACITY	SX, DX, QD
FIBRE TYPE	A1 (G657A1), A2 (G657A2), B3 (G657B3), M1 (OM1), M2 (OM2), M3 (OM3), M4 (OM4), M5 (OM5), S2 (OS2)
COLOUR	AQU, BEG, BLK, BLU, GRN, GRY, ORN, PRL, RED, WHT
LENGTH (M)	1, 2, 3, 4, 5, 10, 15, 20, 100
OPTIONS	/UB Unibooted, /LK Locked, /SB Short Boot, /AB Angled, /LKU Locked & Uniboot, /AU Angled Uniboot, Blank

Təhlükəsiz alış-veriş

Tətbiq sahəsi

	Simplex	Duplex
Cable Material	LSZH/PVC	LSZH/PVC
Strength Member	Aramid	Aramid
Crush (N/100mm)	1000	1000
Tensile (N)	120	120
Operating Temperature (°C)	-20 to 60	-20 to 60
Overfilled Modal Bandwidth (MHz x km)	≤ 3500 @ 850nm / ≤ 500 @ 1300nm
Attenuation (dB/hm)	≥ 2.4 @ 850nm / ≥ 0.6 @ 1300nm
