| Fibre Diameter |
Cladding Diameter: 80 -150 µm; Coating Diameter: 100~1000 µm |
| Applicable fibres |
SM, MM, DS, NZDS, G655, G657 and others |
| Splice loss |
0.01 dB (MM), 0.02 dB (SM), 0.05 dB (DS/NZDS/G.655/G.657) |
| Return loss |
60dB |
| Tension Test |
2.0N |
| Protection sleeve length |
25mm, 40mm, 50mm |
| Tube-heat Time |
35 s |
| Alignment |
Core Alignment (PAS Technology) |
| Splicing method |
Arc splicing |
| Display |
Colour 3.5 Inch TFT |
| Splice Memory |
10 000 splices |
| Electrode Span |
At least 5000 times |
| Operating Temp |
-18 ºC ~ 50 ºC |
| Power Supply |
Internal Li-Battery, DC adaptor |
| DC output |
12V/2A Power for the external heater, light or hot jacket stripper |
| Battery Capacity |
More than 150 times of continuous splices and heats |
| Dimension |
122mm (Length) x 122mm (Width) x 130mm (Height) |
| Weight |
2.0 kg. (Include battery) |

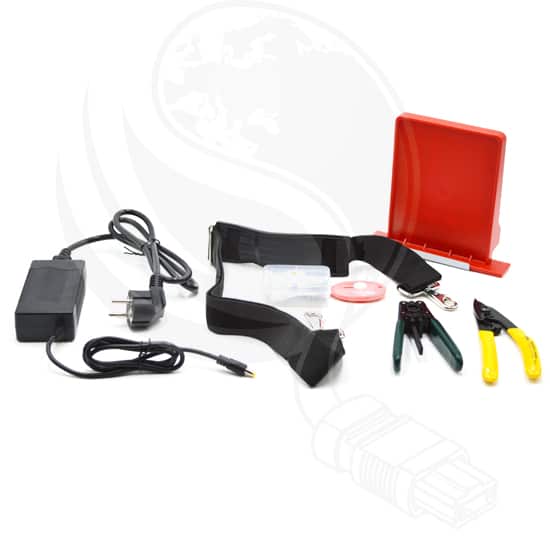

| Standard package |
Main body, cleaver, stripper, battery, charger, electrode, holders, cooling tray, manual, carry case |
| International Standards |
According to European Council Low Voltage Directive LVD 73/23/EC and Electromagnetic Compatibility Directive EMC 89/336/EEC |
