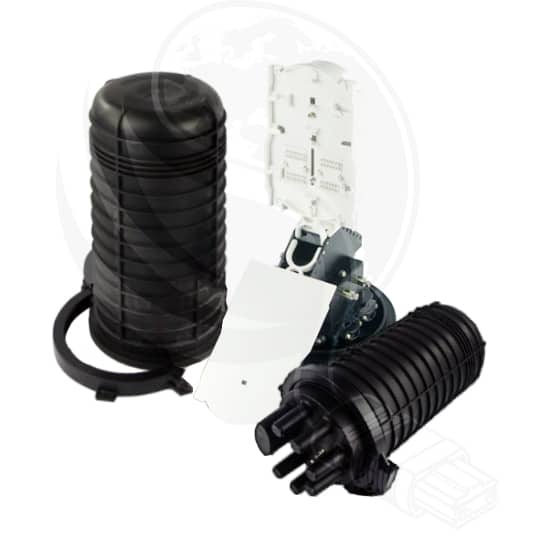

Heat Shrink Fiber Optik Dome Mufta – Model 04 – 240 FO
| SEALING TYPE | MN Mechanical, HS Heat Shrink |
|---|---|
| DIRECTION OF USE | D Dome, I Inline |
| MODEL | 01, 02, 03, 04, 05, 06, 07, 08, 09, 10, 11, 12, 13, 14, 15 |
| PRODUCT | ST Splitter, SG Splicing, SD Standard, SL Slimline, GL Gland |
| MAX SPLICE CAPACITY | 12, 16, 24, 32, 48, 72, 96, 108, 144, 180, 216, 240, 288, 480, 576 |
| SPLITTER | 1X8 (1X8 splitter), 1X16 (1X16 splitter), 1X32 (1X32 splitter), Not required |
| ADAPTER TYPE | SCA (SC APC), SCU (SC UPC), LCA (LC APC), LCU (LC UPC), No splitter |
Tətbiq sahəsi
- Telecommunication networks
- LAN, MAN and WAN applications
- CATV – Kabel televiziyası
- FTTH
Texniki
| Dimensions (mm) | 478×φ260 |
| Weight (kg) | 4.9-5.5 |
| Cable entry ports | 7 entries: 6 (8-17.5mm) 1 (10-20mm) |
| Material | Polymer modified plastic |
| Sealing material | Polycarbonate |
| Type of seal | Heat shrink |
| Max. Capacity per enclosure | 240 |
| Splice capacity for tray | 24 |
| Application | Aerial, manhole and wall |
| IP rating | IP68 |
| Accessories included | Splice trays, cable ties, cable fixings, pole-mounting hoop, sandpaper, sealing gasket, splice protection sleeves, silver paper and insulating tape |
