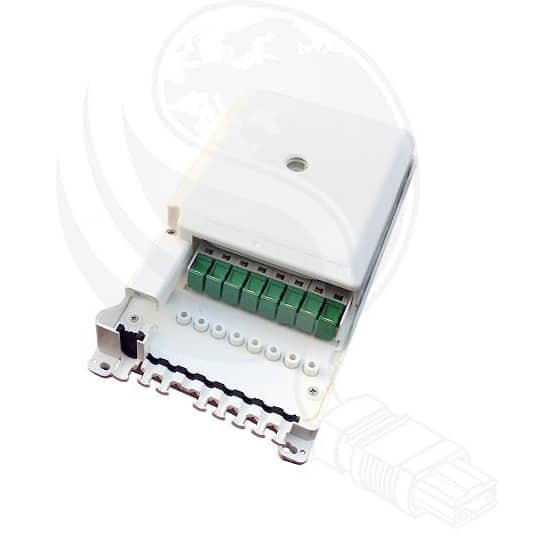

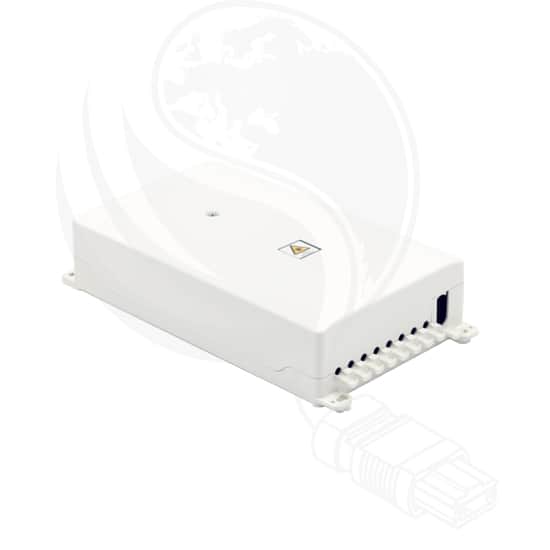

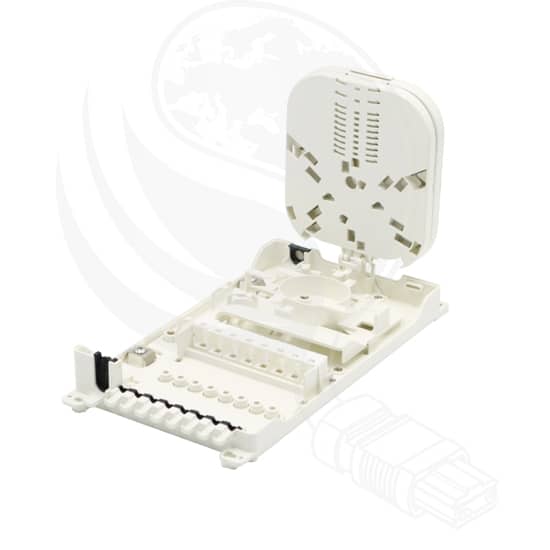

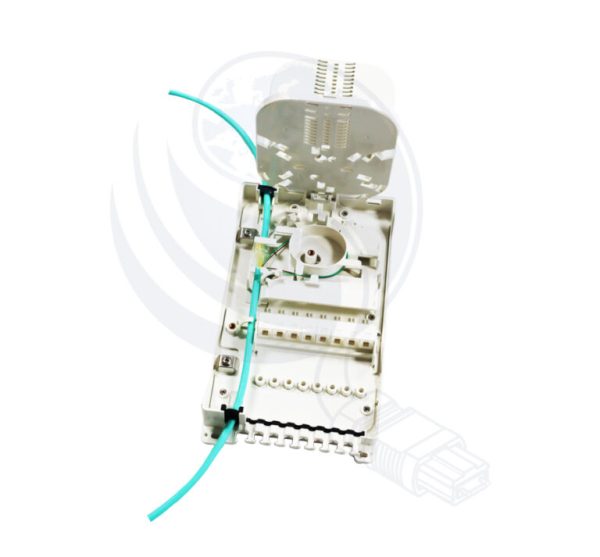

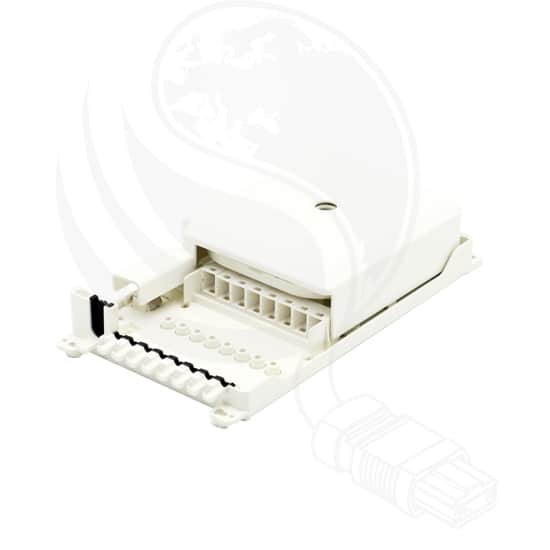

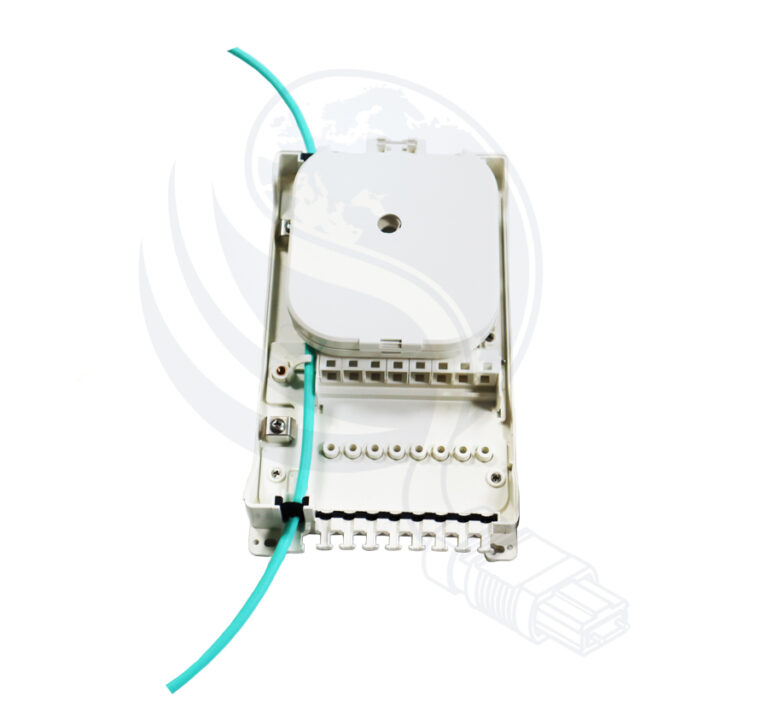

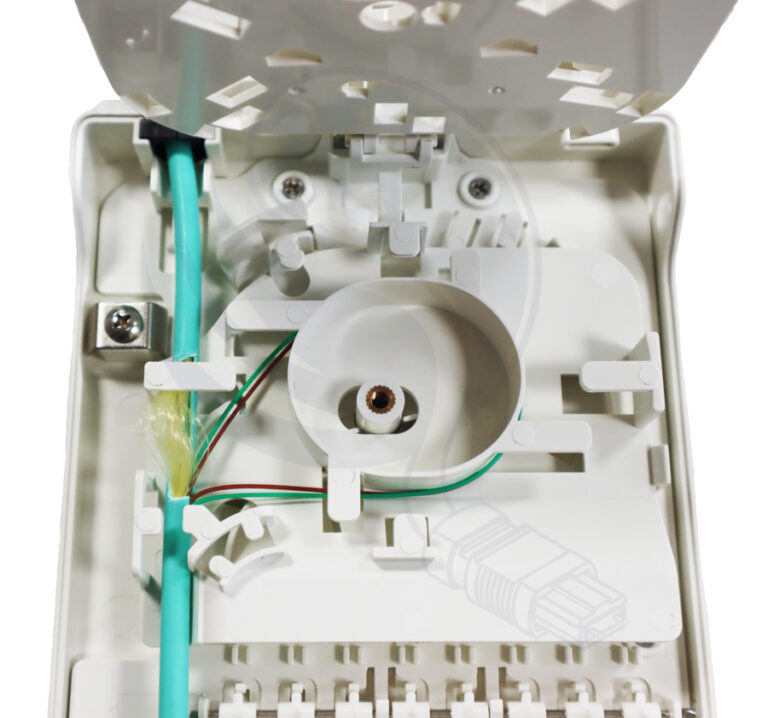

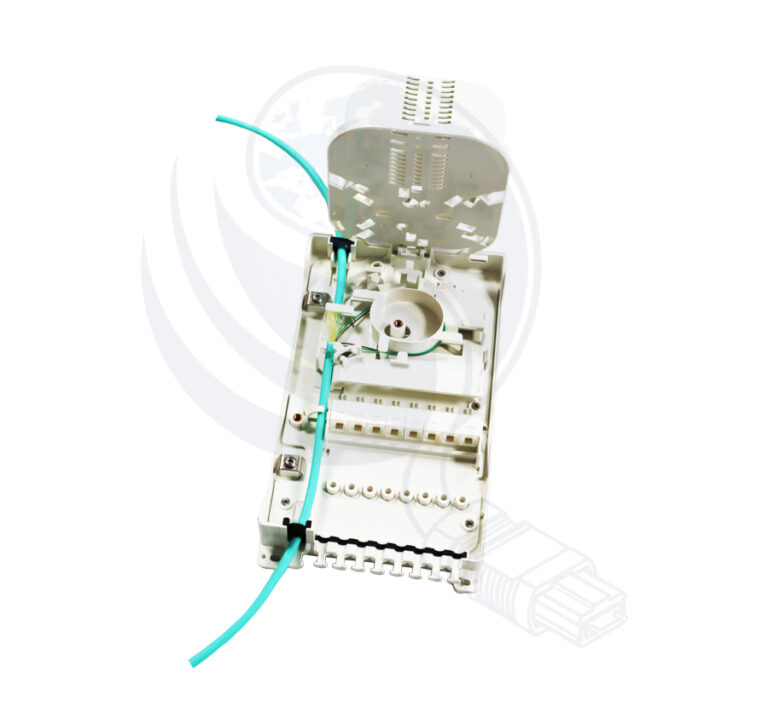

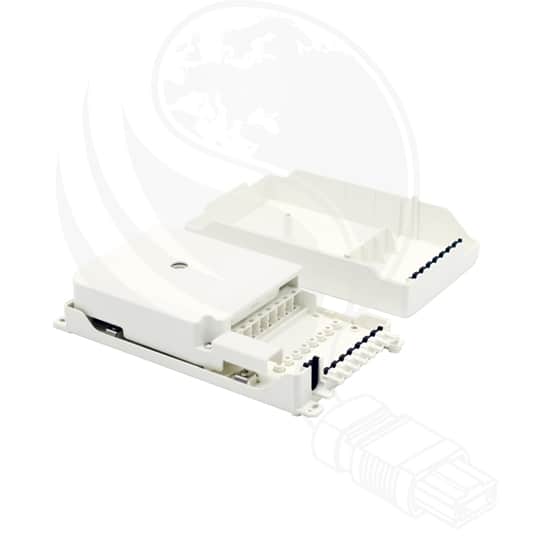

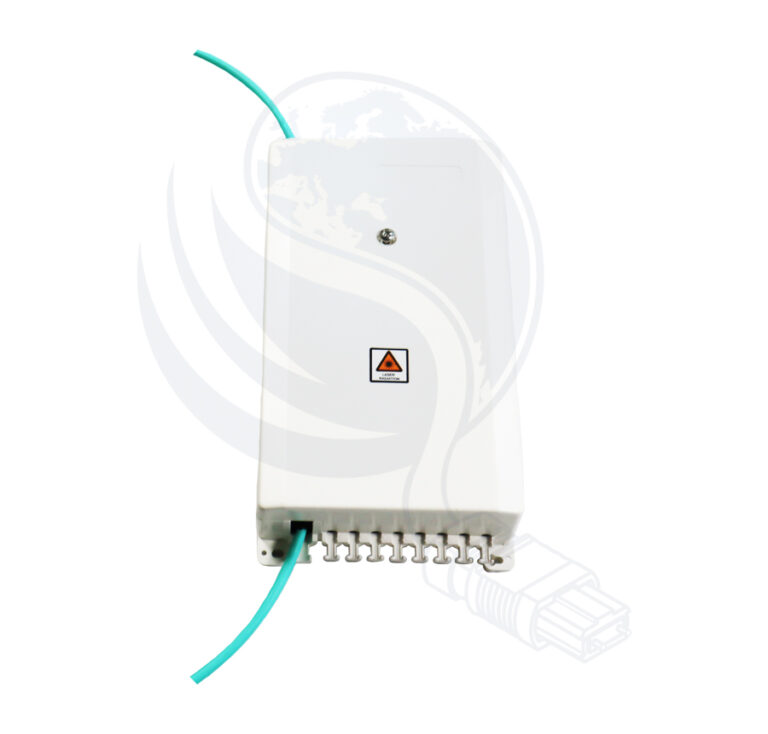

Indoor Corridor Splitter Paylayıcı qutu – Plastik – Model 02 – 16 FO
| PRODUCT | ISB |
|---|---|
| MODEL | 02 |
| MATERIAL | P |
| ADAPTER TYPE | SC, LC |
| POLISH TYPE (BLANK IF UNLOADED) | A, U, |
| CAPACITY | SX, DX |
| NO OF FIBRES | 8, 16 |
| ADDITIONAL (BLANK IF UNLOADED) | /P, |
Tətbiq sahəsi
- Telecommunication networks
- LAN, MAN and WAN applications
- CATV – Kabel televiziyası
- FTTH
Texniki
| Max. Capacity | SC: 8 fibres, LC: 16 Fibres |
| Max. Inlet Cable Diameter | Maximum 10mm |
| Max. Outlet Cable Diameter | Diameter of drop cable (Round): Maximum Φ5 mm Dimension of drop cable (Flat) : 2 mm x 1.6 mm |
| Inlet Cable Number | 2pcs |
| Outlet Cable Number | 8pcs |
| Protection Grade | IP30 |
| Installation Method | Wall mounting |
| Working Environment | Indoor |
| Product Dimension (H × W × D) | 240 × 120 × 48 × mm |
| Splitter | 1 × 8 blockless splitter |
| Cable Entries | 2 in 8 out |
| Weight (kg) | ~ 0.6 |
| Colour | White |
| Working Temperature | -25°C ~ +55°C |
| Storage Temperature | -40°C ~ +70°C |
