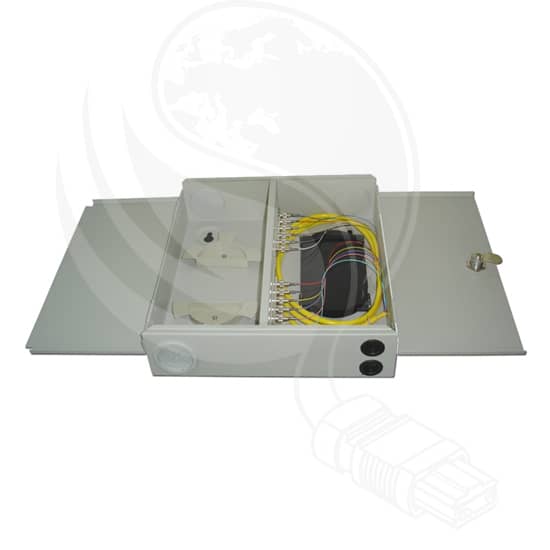

Indoor Splicing Paylayıcı qutu – Metal – Model 03 – 12 FO
| PRODUCT | ITB (Indoor Subscriber Terminal Box), IDB (Indoor Distribution Box), OTB (Outdoor Subscriber Terminal Box), ODB (Outdoor Distribution Box), ISB (Indoor Splitter Box), OSB (Outdoor Splitter Box) |
|---|---|
| MODEL | 01, 02, 03, 04, 05, 06, 07, 08, 09, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32 |
| MATERIAL | P Plastic, M Metal |
| ADAPTER TYPE | FC, LC, SC, ST, E2, MTP |
| POLISH TYPE | A (Angled), U (Unpolished) |
| CAPACITY | SX, DX, QD |
| NO OF FIBRES | 01, 02, 04, 06, 08, 09, 10, 12, 16, 17, 24, 36, 48, 72, 96, 120, 144, 192 |
| ADDITONAL | /P Pigtails, Blank if unloaded |
Tətbiq sahəsi
- Telecommunication networks
- LAN, MAN and WAN applications
- CATV – Kabel televiziyası
- FTTH
Texniki
| Material | Cold-Rolled Steel |
| Dimensions | Model 3 – 300 x 300 x 81.5mmModel 4 – 380 x 400 x 81.5mm
Model 5 – 380 x 400 x 135.6mm |
| Max. Qty of Splice Tray | Model 3 – 1 pcsModel 4 – 4 pcs
Model 5 – 4pcs |
| Max. Splice Tray Capacity | 12 Fibres |
| Max. Capacity | Model 3 – 12 fibresModel 4 – 48 fibres
Model 5 – 96 fibres |
