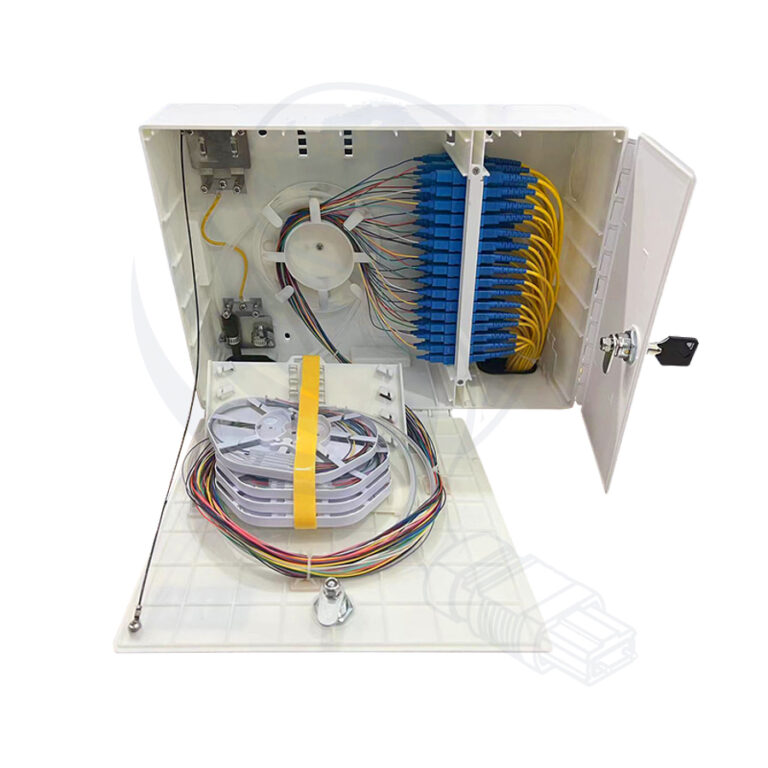

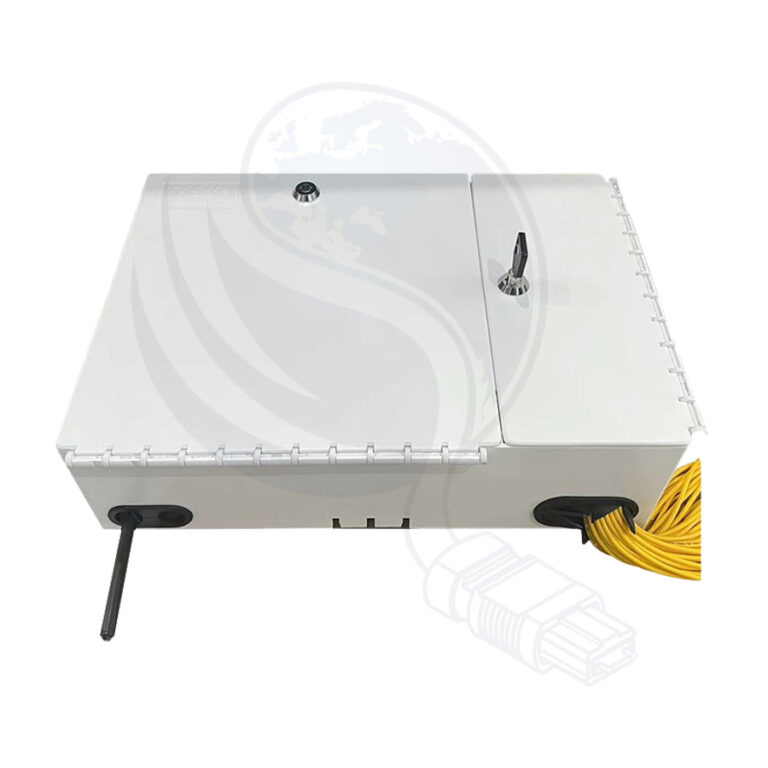

Indoor Splicing Paylayıcı qutu – Plastik – Model 07 – 48 FO

PRODUCT	IDB
MODEL	01
MATERIAL	P
ADAPTER TYPE	SC, LC
POLISH TYPE	A, U
CAPACITY	SX, DX
NO OF FIBRES	48
ADDITIONAL (BLANK IF UNLOADED)	/P,

Təhlükəsiz alış-veriş

Tətbiq sahəsi

Max. Capacity	48 fibres (For one)
In/Outlet Cable Number 3 pcs	3 pcs
Cable Type	Supports importing of max Ф16 mm feeder cables, Ф7.6 mm vertical cables, and Ф5.0 mm drop cables
Splicing Trays	96 (8 cores in one layer and 16 cores in a double layer, maximum, 6 trays)
Splitter Capacity	3 pieces (Maximum)
Protection Grade	IP34
Installation Method	Wall mounting
Working Environment	Indoor
Dimension	260(H)360(W)101.6(D)mm
