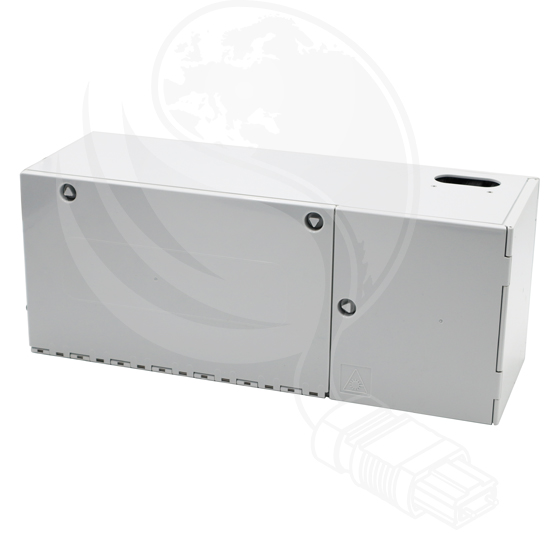

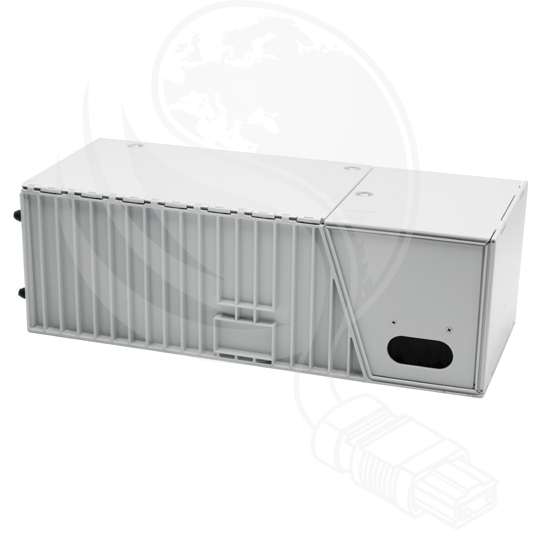

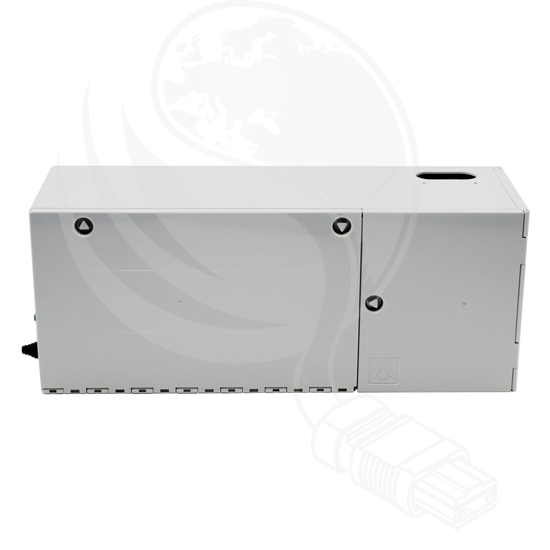

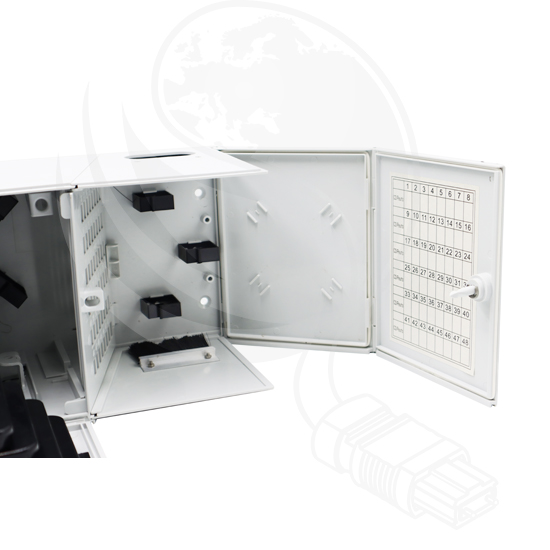

Indoor Splicing Paylayıcı qutu – Plastik – Model 08 – 48 FO

PRODUCT	IDB
MODEL	01
MATERIAL	P
ADAPTER TYPE	SC, LC
POLISH TYPE	A, U
CAPACITY	SX, DX
NO OF FIBRES	48
ADDITIONAL (BLANK IF UNLOADED)	/P,

Təhlükəsiz alış-veriş

Tətbiq sahəsi

Max. Capacity	48 fibres (For one)

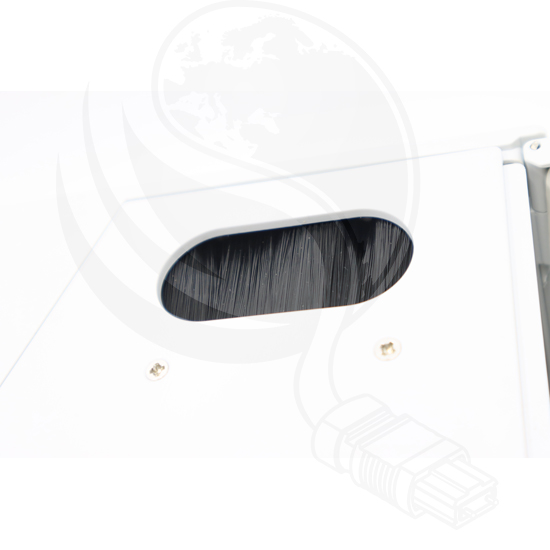

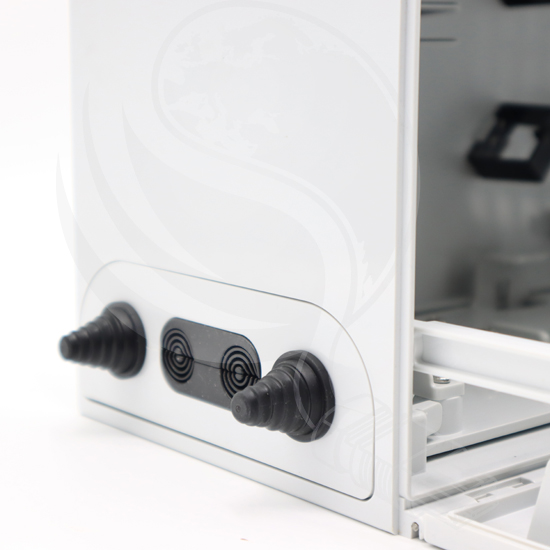

In/Outlet Cable Number 3 pcs	3 pcs
Cable Type	Supports importing of max Ф16 mm feeder cables, Ф7.6 mm vertical cables, and Ф5.0 mm drop cables

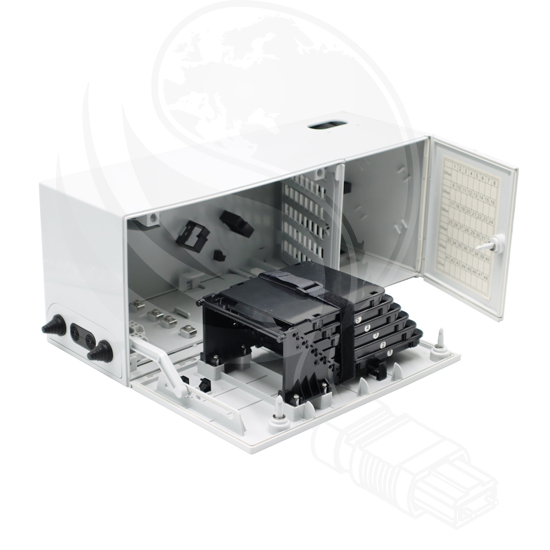

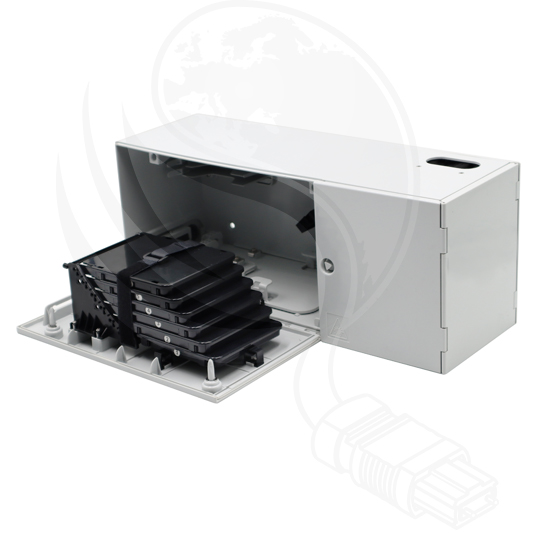

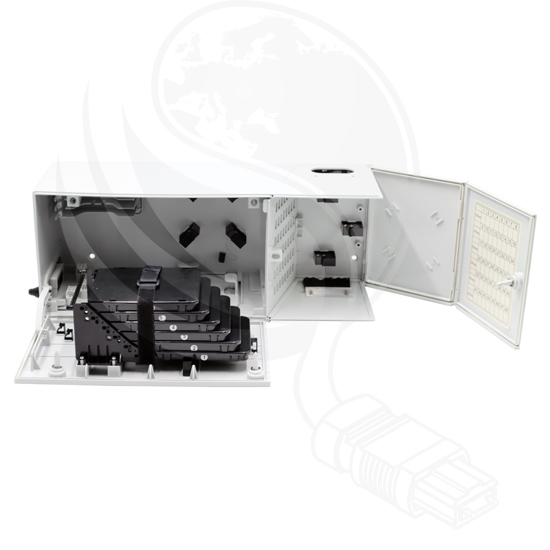

Splicing Trays	96 (8 cores in one layer and 16 cores in a double layer, maximum, 6 trays)

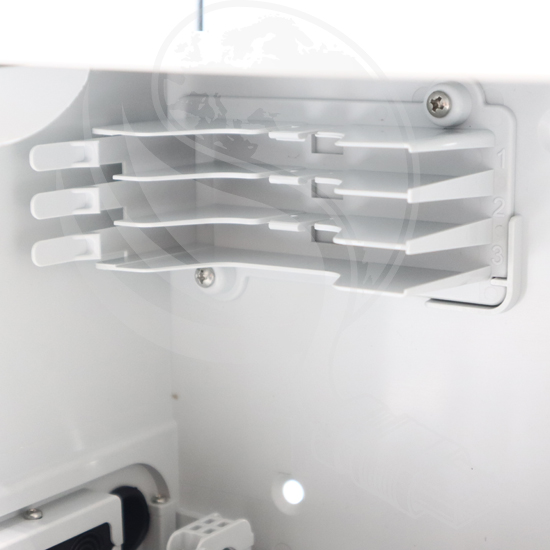

Splitter Capacity	3 pieces (Maximum)
Protection Grade	IP50
Installation Method	Wall mounting
Working Environment	Indoor
Dimension	180(H)460(W)150(D)mm
Net Weight	3.5kg
Gross Weight	4kg
