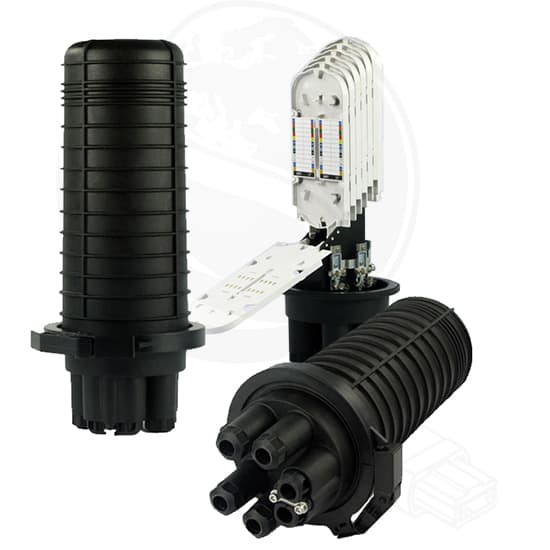

Mechanical Fiber Optik Dome Mufta – Model 03 – 144 FO

SEALING TYPE	MN Mechanical, HS Heat Shrink
DIRECTION OF USE	D Dome, I Inline
MODEL	01, 02, 03, 04, 05, 06, 07, 08, 09, 10, 11, 12, 13, 14, 15
PRODUCT	ST Splitter, SG Splicing, SD Standard, SL Slimline, GL Gland
MAX SPLICE CAPACITY	12, 16, 24, 32, 48, 72, 96, 108, 144, 180, 216, 240, 288, 480, 576
SPLITTER	1X8 (1X8 splitter), 1X16 (1X16 splitter), 1X32 (1X32 splitter), Not required
ADAPTER TYPE	SCA (SC APC), SCU (SC UPC), LCA (LC APC), LCU (LC UPC), No splitter

Təhlükəsiz alış-veriş

Tətbiq sahəsi

Usage	Aerial; Manhole; Wall;
Cable Entries	5 entries @ 10-17.5mm
Type of Seal	Mechanical
IP Rating	IP68
Box Material	Polymer Modified Plastic
Sealing Material	Vulcanised Silicone Rubber
Splice capacity per tray	24
Maximum Splice Capacity per enclosure	144
Included Accessories	Splice trays, cable ties, cable fixings, pole-mounting hoop, sandpaper, Sealing gasket, splice protection sleeves, silver paper, insulating tape
