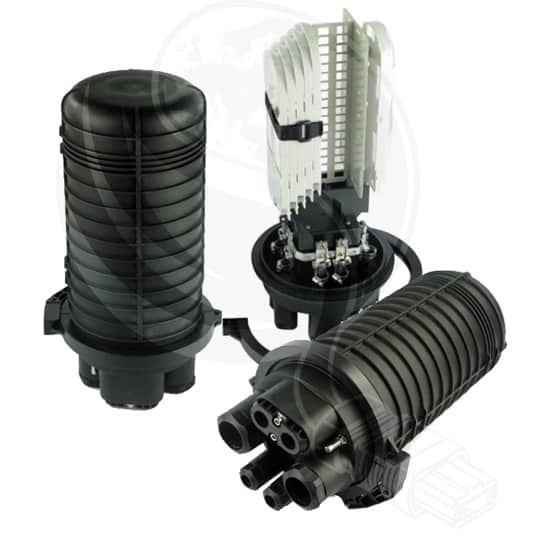

Mechanical Fiber Optik Dome Mufta – Model 09 – 120 FO
| SEALING TYPE | MN Mechanical, HS Heat Shrink |
|---|---|
| DIRECTION OF USE | D Dome, I Inline |
| MODEL | 01, 02, 03, 04, 05, 06, 07, 08, 09, 10, 11, 12, 13, 14, 15 |
| PRODUCT | ST Splitter, SG Splicing, SD Standard, SL Slimline, GL Gland |
| MAX SPLICE CAPACITY | 12, 16, 24, 32, 48, 64, 72, 96, 108, 120, 144, 180, 216, 240, 288, 480, 576 |
| SPLITTER | 1X8 (1X8 splitter), 1X16 (1X16 splitter), 1X32 (1X32 splitter), Not required |
| ADAPTER TYPE | SCA (SC APC), SCU (SC UPC), LCA (LC APC), LCU (LC UPC), No splitter |
Tətbiq sahəsi
- Telecommunication networks
- LAN, MAN and WAN applications
- CATV – Kabel televiziyası
- FTTH
Texniki
| Usage | Aerial; Manhole; Wall; |
| Dimensions | (450×φ230)mm |
| Cable Entries | 4 entries @ 10-17.5mm, 1 entry @ 10-22mm |
| Weight | 5.8 ~ 6.2 Kg |
| Type of Seal | Mechanical |
| IP Rating | IP68 |
| Box Material | Polymer Modified Plastic |
| Sealing Material | Vulcanised Silicone Rubber |
| Splice capacity per tray | 24 (34 SC SX Adaptor ports |
| Maximum Splice Capacity per enclosure | 120 or 2×32 FO Splitter SC SX |
| Included Accessories
|
Splice trays, cable ties, cable fixings, pole-mounting hoop, sandpaper, Sealing gasket, splice protection sleeves, silver paper, insulating tape |
