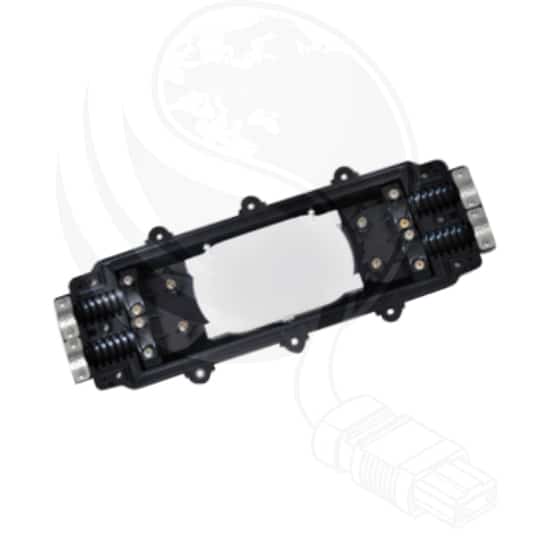

Mechanical Inline Fiber Optik Mufta – Standard – Model 11 – 144 FO
| SEALING TYPE | MN Mechanical, HS Heat Shrink |
|---|---|
| DIRECTION OF USE | D Dome, I Inline |
| MODEL | 01, 02, 03, 04, 05, 06, 07, 08, 09, 10, 11, 12, 13, 14, 15 |
| PRODUCT | ST Splitter, SG Splicing, SD Standard, SL Slimline, GL Gland |
| MAX SPLICE CAPACITY | 12, 16, 24, 32, 48, 72, 96, 108, 144, 180, 216, 240, 288, 480, 576 |
| SPLITTER | 1X8 (1X8 splitter), 1X16 (1X16 splitter), 1X32 (1X32 splitter), Not required |
| ADAPTER TYPE | SCA (SC APC), SCU (SC UPC), LCA (LC APC), LCU (LC UPC), No splitter |
Tətbiq sahəsi
- Telecommunication networks
- LAN, MAN and WAN applications
- CATV – Kabel televiziyası
- FTTH
Texniki
| Size (mm) | 460x180x120 |
| Weight (kg) | 2.6 |
| Cable Port (Entry/Exit) | 4 (2/2) |
| Cable Dia. (mm) | 12.5-20 |
| Storage Fibre Length (m) | ≥1.6 |
| Max Capacity (single fibre) | 144 Cores |
| Working Temperature | – 40℃ ~ + 70℃ |
| Lateral pressure | ≥2000N / 10cm |
| Material | Polypropylene |
| Shock resistance | ≥20N.m |
