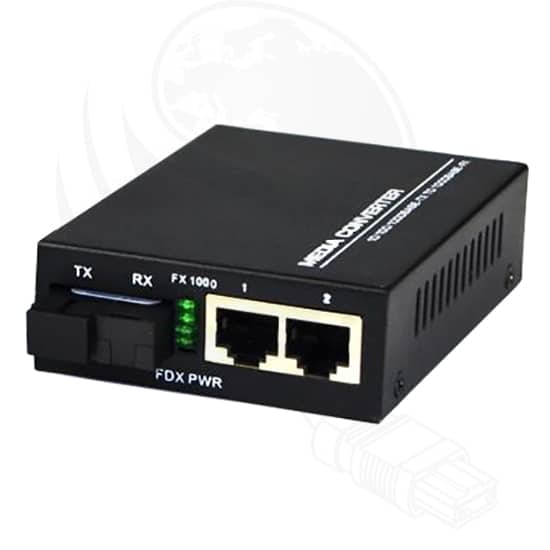

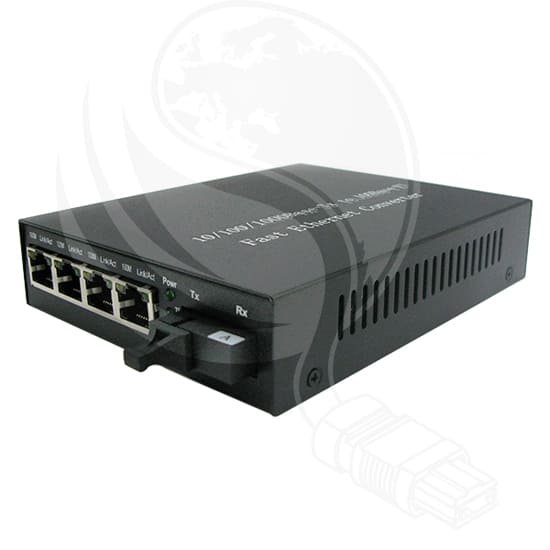

Media Konverter Tək Lifli 2-4 X RJ45 – 10/100/1000M
| CONNECTOR | FC, LC, SC, ST, SF (SFP) |
|---|---|
| TYPE OF TRANSMISSION | D (Dual), S (Single) |
| COPPER CONNECTION TYPE | 1RJ (1 RJ45), 2RJ (2 RJ45), 4RJ (4 RJ45), 6RJ (6 RJ45), 8RJ (8 RJ45), 12RJ (12 RJ45), 16RJ (16 RJ45) |
| POWER SUPPLY | EP (External Power), IP (Internal Power), PO (Power Over Ethernet), IE (Industrial PoE), OE (OEO) |
| SPEED | ET (10/100M), GB (10/100/1000M), G1 (1000M), G2 (2.5GB), G5 (5GB), 10 (10GB) |
| FIBRE CONNECTOR TYPE | SM (Single-mode), M (Multimode) |
| DISTANCE | 10 (10km), 20 (20km), 40 (40km), 60 (60km), 80 (80km), 100 (100km), 120 (120km), 550 (550m – Multimode only) |
| PLUG | UK (UK), EU (European), US (USA) |
Tətbiq sahəsi
- LAN Applications
Texniki
| 2 x RJ45 | 4 x RJ45 | |
| Cable | SM or MM Fibre/Twisted Pair | |
| Transmission Type | 10/100/1000M HDX | |
| Wavelength (nm) | 850~1625 | |
| Bandwidth | 1.4Gbps | |
| Data Buffer | 2Mb | |
| Distance | 550m~120km | |
| Operating Temperature | 0 to +70 | |
| Weight (kg) | 0.2 (External Power), 0.4 (Internal Power) | |
| Dimensions (External Power) (mm) | 95(L) * 70(W) * 26(H) | |
| Dimensions (Internal Power) (mm) | 140(L)* 110(W) * 30(H) | 140(L)* 110(W) * 40(H) |
| Power Consumption | 3.5W | 5W |
| Operating Humidity (%) | 5 – 90 | |
| Power External | DC5V 2A | DC5V 3A |
| LED indicator | POWER (power supply) FX Link/ACT (fibre link/action)TX Link/ACT (RJ45 link/action) 1000M, TDX/COL | |
| Error Rate | < 10-9 | |
| Transmission Distance(km)(m) | Multi-mode Dual-fibre 2 Single-Mode Dual-fibre 20/40/60/80/120Cat5 Twisted Pair 100 | |
| Port | RJ45 Port: Connecting with STP/UTP Cat5 Twisted PairOptical Port: SC ST FC | |
| Conversion Means | Media Conversion, Store-and-Forward | |
