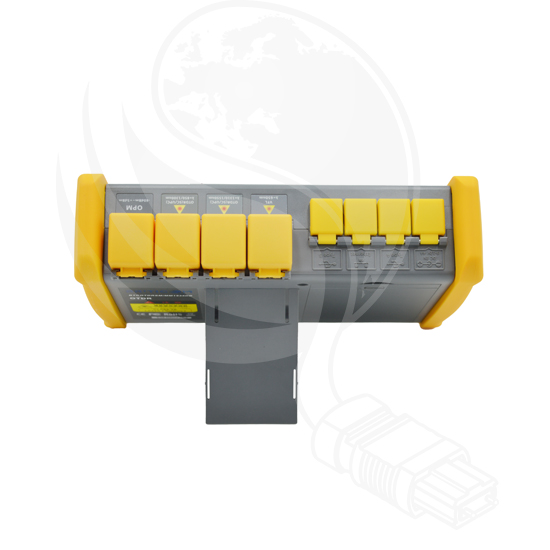

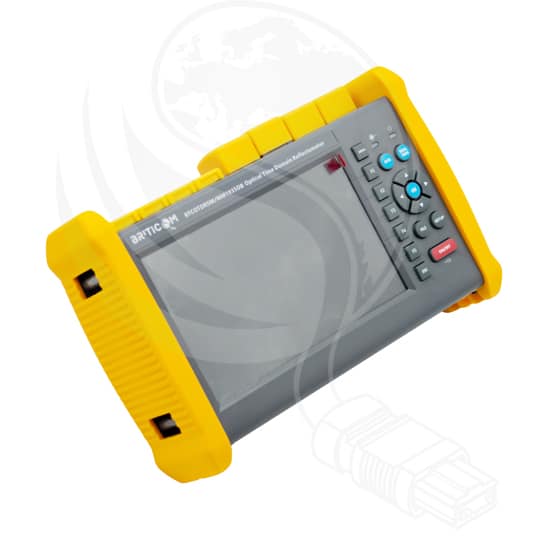

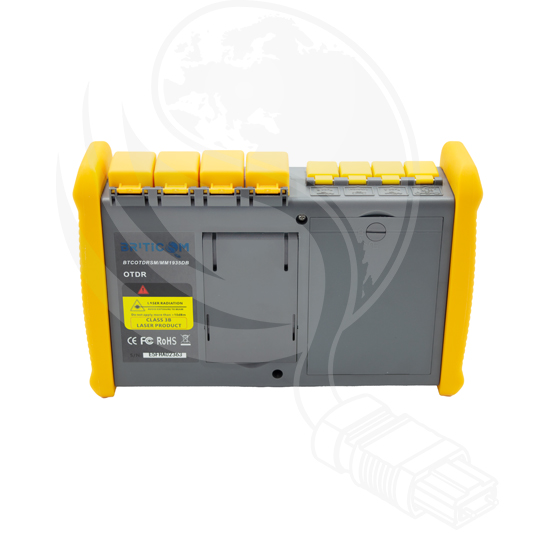

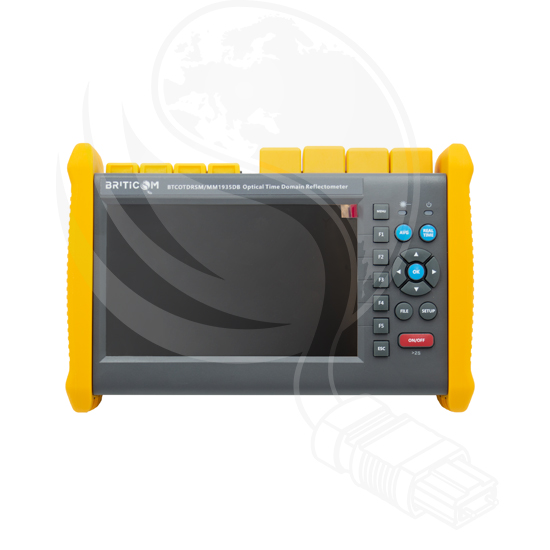

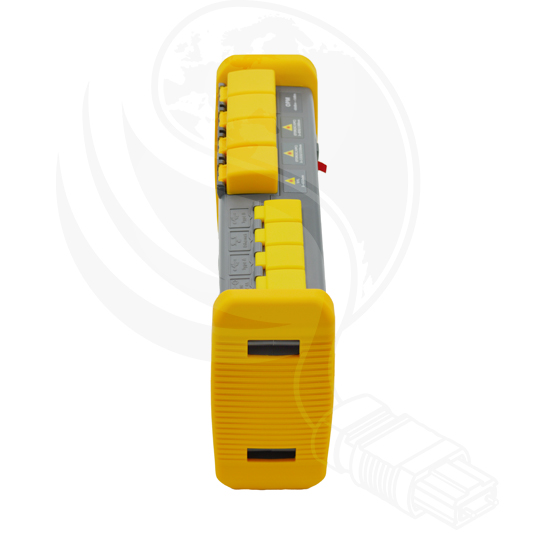

OTDR – Optical Time-Domain Reflectometer

BRANDING	BTC (Briticom Branded)
PRODUCT	OTDR (Optical Time-Domain Reflectometer)
FIBRE TESTING TYPE	SM (Singlemode), MM (Multimode), MS (Singlemode & Multi-mode)
TESTING WAVELENGTH (SM MM)	19/21DB (850/1300: 19/21DB), 21/35DB (850/1300: 19/21) (1310/1550: 35/33), 21/40DB (850/1300: 19/21) (1310/1550: 40/38), 26/24DB (1310/1550: 26/24 dB), 32/30DB (1310/1550: 32/30 dB), 25/33DB (1310/1550: 35/33 dB), 40/38DB (1310/1550: 40/38 dB), 43/41DB (1310/1550: 43/41 dB), 38/38DB (1310/1550/1625: 40/38/38 dB), 41/41DB (1310/1550/1625: 43/41/41 dB), 35/31DB (1310/1550/1650: 35/33/31 dB), 35/33DB (1310/1490/1550: 35/33/33 dB)

Təhlükəsiz alış-veriş

Texniki

Dimension	253x168x73.6mm 1.5kg (battery included)
Display	7-inch TFT-LCD with LED backlight (touch screen function is optional)
Interface	1xRJ45, 3xUSB port (USB2.0, Type A USBx2, Type B USBx1)
Power Supply	10v(dc), 100V(ac) to 240V(ac), 50~60hz
Battery	7.4V(dc)/4.4Ah lithium battery (with air traffic certification) Operating Time: Up to 12 hours, Telecordia GR-196-CORE Charging time: <4 hours (power off)
Power Saving	Backlight off: Disable/1 to 99minutes Auto shutdown: Disable/1 to 99minutes
Data Storage	Internal memory: 4GB (about 40,000 groups of curves)
Language	User selectable (English, Simplified Chinese, Traditional Chinese, French, Korean, Russian, Spanish and Portuguese –contact us for the availability of others)
Environmental Conditions	Operating temperature and humidity: -10°C ~ +50°C, ≤95% (non-condensation) Storage Temperature and humidity: -20°C ~ +75°C, ≤95% (non-condensation) Waterproof/Dustproof: IP65(IEC 60529)
Accessories	Standard: Main unit, power adapter, Lithium battery, FC adapter, USB cord, User guide, CD disk, carrying case Optional: SC/ST/LC adapter, Bare fibre adapter
