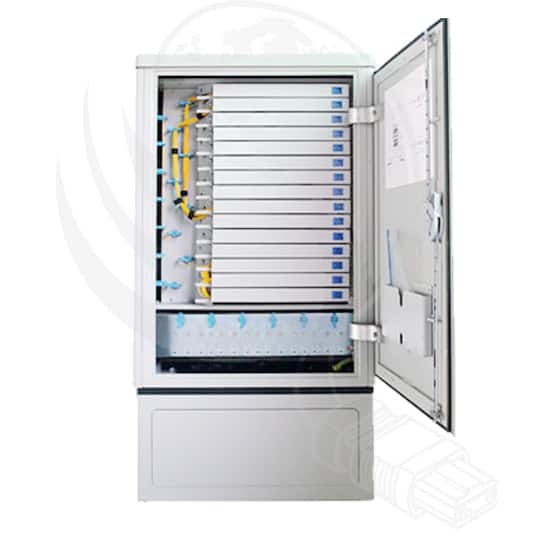

Outdoor Street Fiber Kabinlər – Model O2
| MODEL | O2A, O2B, O2C, O2D |
|---|---|
| PRODUCT | FDF (Fibre Distribution Frame), FSC (Fibre Street Cabinet), FPC(Fibre Pole Cabinet) |
| FIBRES | 288 |
| DOORS | DD Double Doors, SD Single Door |
| IP RATING | I65 (IP65), I55 (IP55) |
| SIZE | 53 (570×340 B), 73 (765×340 A/D), 52 (530×290 C), 75 (750×540 B) |
| COLOUR | K (Black), G (Grey), B (Beige) |
Tətbiq sahəsi
- Telecommunication networks
- LAN, MAN and WAN applications
- CATV – Kabel televiziyası
- FTTH
Texniki
| Material | Cold Rolled Steel (Electrostatic Sprayed), Glass Reinforced Plastic (SMC) |
| Dimensions | Model A: 765 x 1515 x 340mmModel B: 570 x 1030 x 308 ~ 750 x 1450 x 540mm
Model C: 530 x 700 x 290mm Model D: 740 x 1450 x 370mm |
| Adapter Port | SC Simplex |
| Max. Capacity | 288 Fibres |
| Max. Splice Tray Qty | 24 cs |
| Max. Splice Tray Capacity | 12 Fibres |
| IP Rating | IP65 and IK10 rating |
