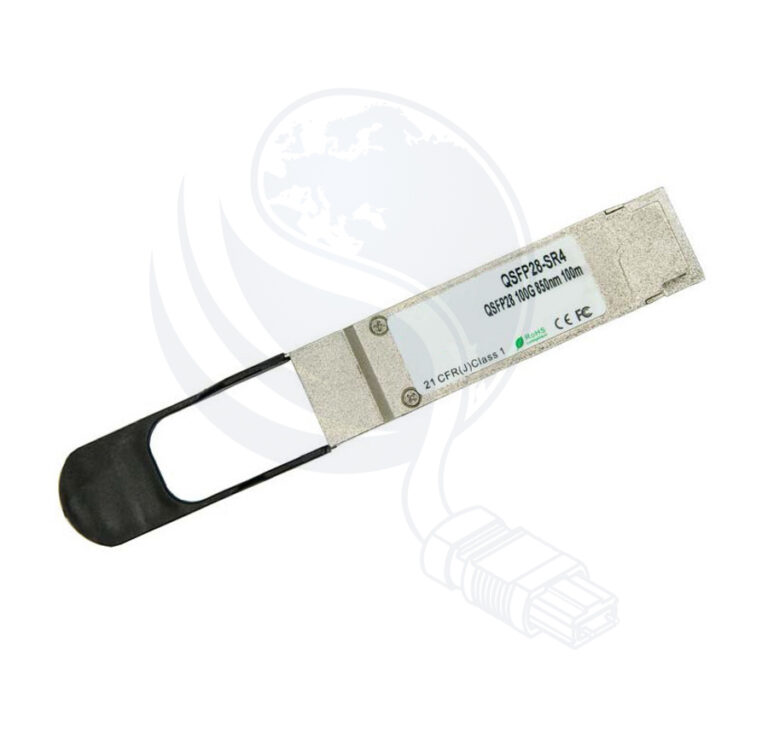

SFP+ 100GB Multimode MM 100m
| PRODUCT | SFP, XFP, QSFP, SFPS (SFP+) |
|---|---|
| SPEED | ET (100M), G1 (1GB), G2 (2GB), G5 (5GB), G6 (6GB), GX (10GB), G2X (20GB), G4X (40GB), GXX (100GB) |
| TYPE | RJ (RJ45), SM (Single-mode), MM (Multimode), BIDI (Bi-Directional), WDM, DDMI, DWDM, CWDM |
| DISTANCE | 100 (100m), 300 (300m), 500 (500m), 2 (2km), 10 (10km), 20 (20km), 40 (40km), 80 (80km), 120 (120km) |
| CODING TYPE | CIS (Cisco), HP, JP (Juniper), EX (Extreme), Leave empty if no coding |
Tətbiq sahəsi
- Rack to Rack
- Data Center
- Infiniband QDR, DDR and SDR
- 100G Ethernet
- Compliant to IEEE 802.3 bm
- Compliant to SFF-8636
- RoHS Compliant.
Texniki
| Parameter | Symbol | Min. | Typ. | Max | Unit |
| Power Consumption | P | 3.8 | W | ||
| Supply Current | Icc | 1.06 | A | ||
| Transceiver Power-on Initialization | 2000 | ms | |||
| Transmitter (Each Lane) | |||||
| Single Ended Input Voltage | -0.3 | 4.0 | V | ||
| AC Common Mode Input Voltage Tolerance | 15 | mV | |||
| Differential Input Voltage | 50 | mVpp | |||
| Differential Input Voltage Swing | Vin | 900 | mVpp | ||
| Differential Input Impedance | Zin | 90 | 100 | 110 | Ohm |
| Receiver (Each Lane) | |||||
| Single-Ended Output Voltage | -0.3 | 4.0 | V | ||
| AC Common Mode Output | 7.5 | mV | |||
| Differential Output Voltage Swing | Vout | 300 | 850 | mVpp | |
| Differential Output Impedance | Zout | 90 | 100 | 110 | Ohm |
