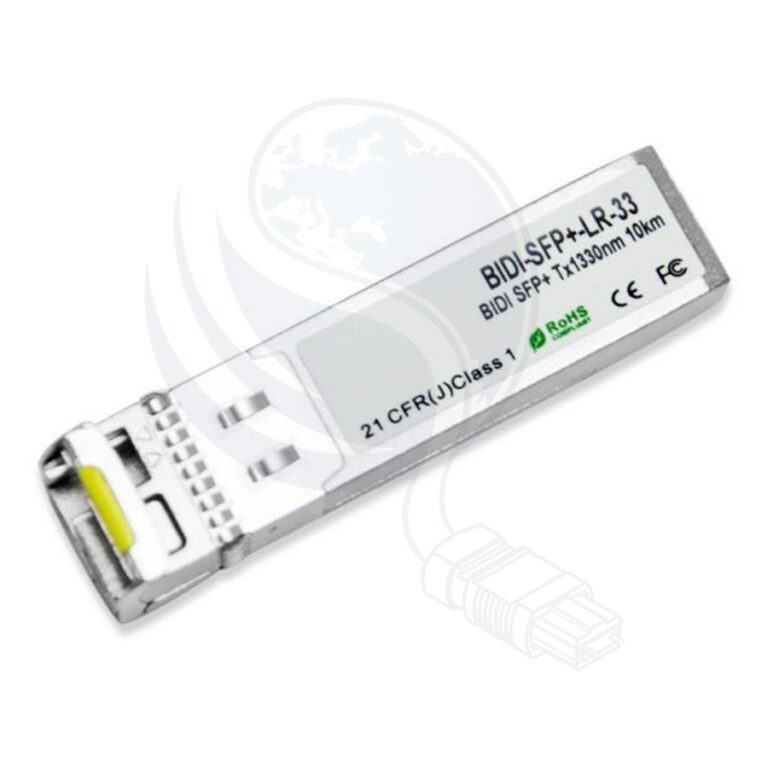

SFP+ 10GB BIDI Singlemode SM 20km
| PRODUCT | SFP, XFP, QSFP, SFPS (SFP+) |
|---|---|
| SPEED | ET (100M), G1 (1GB), G2 (2GB), G5 (5GB), G6 (6GB), GX (10GB), G2X (20GB), G4X (40GB), GXX (100GB) |
| TYPE | RJ (RJ45), SM (Single-mode), MM (Multimode), BIDI (Bi-Directional), WDM, DDMI, DWDM, CWDM |
| DISTANCE | 100 (100m), 300 (300m), 500 (500m), 2 (2km), 10 (10km), 20 (20km), 40 (40km), 80 (80km), 120 (120km) |
| CODING TYPE | CIS (Cisco), HP, JP (Juniper), EX (Extreme), Leave empty if no coding |
Tətbiq sahəsi
- 10GBASE-BX at 10.3125 Gb/s
- 10GBASE-BX at 9.953 Gb/s
- 1000 Base-LX Ethernet
- 8XFC at 8.5Gbps
- 4XFC at 4.25Gpbs
- 2XFC at 2.125Gpbs
- 1xFC at 1.0625Gbps
Texniki
| Parameter | Symbol | Min. | Typ. | Max | Unit |
| Total Power Supply Current | Icc | – | 300 | 450 | mA |
| Transmitter | |||||
| Differential Data Input Voltage | VDT | 180 | – | 700 | mVp |
| Differential Line Input Impedance | RIN | 85 | 100 | 115 | Ohm |
| Transmitter Fault Output – High | VFaultH | 2.4 | – | Vcc | V |
| Transmitter Fault Output – Low | VFaultL | -0.3 | – | 0.8 | V |
| Transmitter Disable Voltage – High | VDisH | 2 | – | Vcc+0.3 | V |
| Transmitter Disable Voltage – Low | VDisL | -0.3 | – | 0.8 | V |
| Receiver | |||||
| Differential Data Output Voltage | VDR | 300 | – | 850 | mVp |
| Differential Line Output Impedance | ROUT | 80 | 100 | 120 | Ohm |
| Receiver LOS Pull up Resistor | RLOS | 4.7 | – | 10 | KOh |
| Data Output Rise/Fall time | tr/tf | 20 | – | – | ps |
| LOS Output Voltage – High | VLOSH | 2 | – | Vcc | V |
| LOS Output Voltage – Low | VLOSL | -0.3 | – | 0.4 | V |
