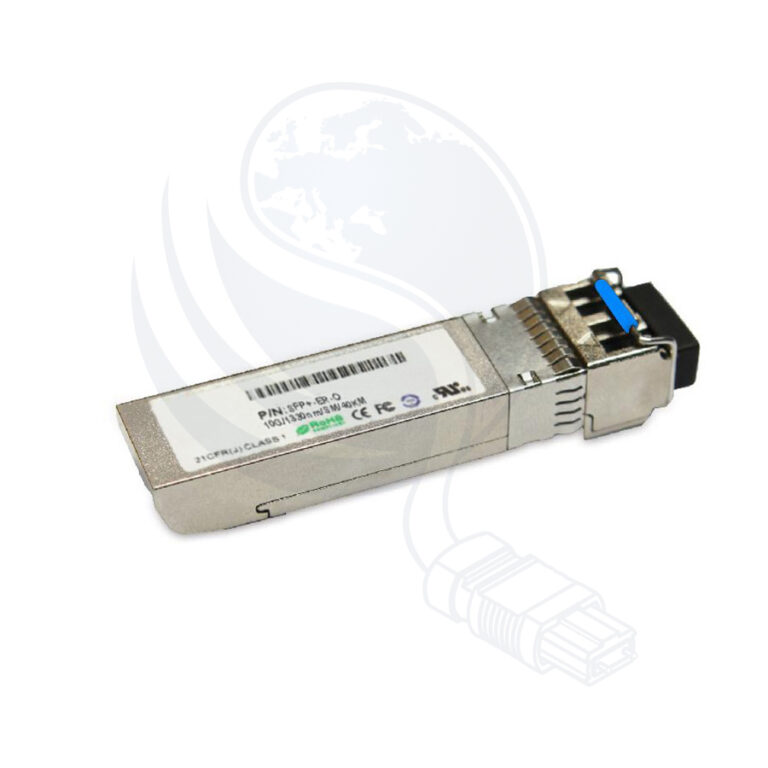

SFP+ 10GB Singlemode SM 20km
| PRODUCT | SFP, XFP, QSFP, SFPS (SFP+) |
|---|---|
| SPEED | ET (100M), G1 (1GB), G2 (2GB), G5 (5GB), G6 (6GB), GX (10GB), G2X (20GB), G4X (40GB), GXX (100GB) |
| TYPE | RJ (RJ45), SM (Single-mode), MM (Multimode), BIDI (Bi-Directional), WDM, DDMI, DWDM, CWDM |
| DISTANCE | 100 (100m), 300 (300m), 500 (500m), 2 (2km), 10 (10km), 20 (20km), 40 (40km), 80 (80km), 120 (120km) |
| CODING TYPE | CIS (Cisco), HP, JP (Juniper), EX (Extreme), Leave empty if no coding |
Tətbiq sahəsi
- Ethernet
- Fiber Channel
Texniki
| Parameter | SYMB | MIN | TYP. | MAX | UNIT |
| Transmitter Section | |||||
| Center Wavelength | λ0 | 1310 | 1330 | 1350 | nm |
| Side-Mode Suppression Ratio | SMSR | 35 | – | – | dB |
| Average Output Power | Po | 0 | – | -4 | dBm |
| Extinction Ratio | Er | 3.5 | – | – | dB |
| Dispersion Penalty | 3.2 | dB | |||
| Relative Intensity Noise | RIN12OMA | -128 | dB/Hz | ||
| Total Jitter | Tj | IEEE 802.3AE | |||
| Receiver Section | |||||
| Center Wavelength | λ0 | 1330 | nm | ||
| Receiver Sensitivity | Rsen | -15 | dBm | ||
| Stressed Sensitivity | Rsen | -15.5 | dBm | ||
| Receiver Overload | Rov | -3 | dBm | ||
| Return Loss | 12 | dB | |||
| LOS Assert | LOSa | -28 | dBm | ||
| LOS Dessert | LOSd | -16 | dBm | ||
| LOS Hysteresis | 0.5 | 4 |
