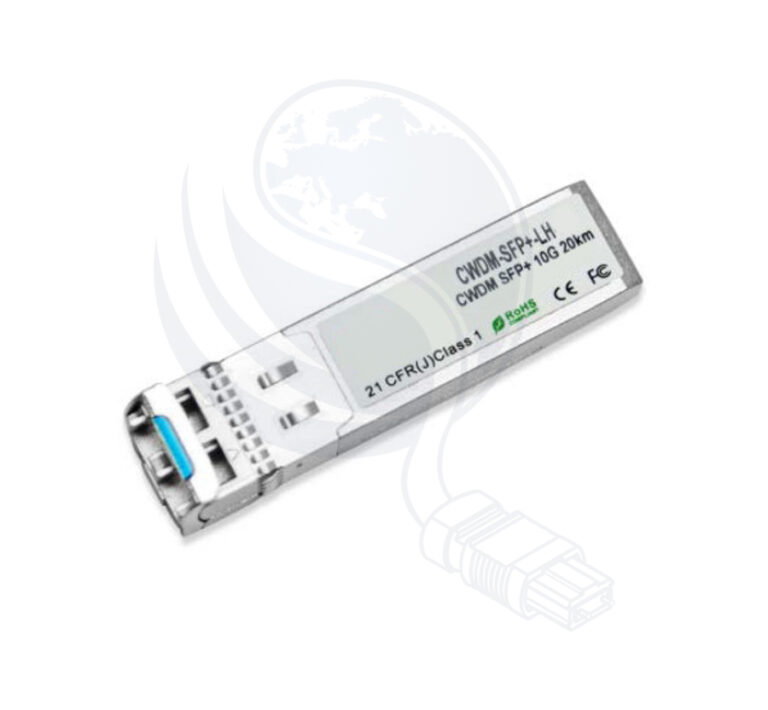

SFP+ 10GB SM 20km CWDM
| PRODUCT | SFP, XFP, QSFP, SFPS (SFP+) |
|---|---|
| SPEED | ET (100M), G1 (1GB), G2 (2GB), G5 (5GB), G6 (6GB), GX (10GB), G2X (20GB), G4X (40GB), GXX (100GB) |
| TYPE | RJ (RJ45), SM (Single-mode), MM (Multimode), BIDI (Bi-Directional), WDM, DDMI, DWDM, CWDM |
| DISTANCE | 100 (100m), 300 (300m), 500 (500m), 2 (2km), 10 (10km), 20 (20km), 40 (40km), 80 (80km), 120 (120km) |
| CODING TYPE | CIS (Cisco), HP, JP (Juniper), EX (Extreme), Leave empty if no coding |
Tətbiq sahəsi
- 10GBASE-LR at 10.3125Gbps
- 10GBASE-LW at 9.953Gbps
- Other optical links
Texniki
| Parameter | SYMB | MIN |
| Operating Reach | m | 20km |
| Transmit | ||
| Center Wavelength (range) | nm | 1270-1610 |
| Side Mode Suppression Ratio (min) | dB | 30 |
| Launched Power | ||
| – maximum | dBm | 0 |
| – minimum | dBm | -5 |
| – OMA | dBm | -5.2 |
| Average launch power of OFF transmitter | dBm | -30 |
| Extinction ratio (min) | dB | 3.5 |
| RIN12 OMA (max) | dB/Hz | -128 |
| Optical Return Loss Tolerance (min) | dB | 12 |
| Center Wavelength (range) | nm | 1260-1355 |
| Receive overload (max) in average power1 | dBm | 0.5 |
| Receive sensitivity (min) in average power1 | dBm | -15 |
| Vertical eye closure penalty (min)3 | dB | 2.2 |
| Stressed eye jitter (min)2 | Ulp-p | 0.7 |
| Receive electrical 3dB upper cutoff frequency (max) | GHz | 12.3 |
| Receiver power (damage, Max) | dBm | 1.5 |
