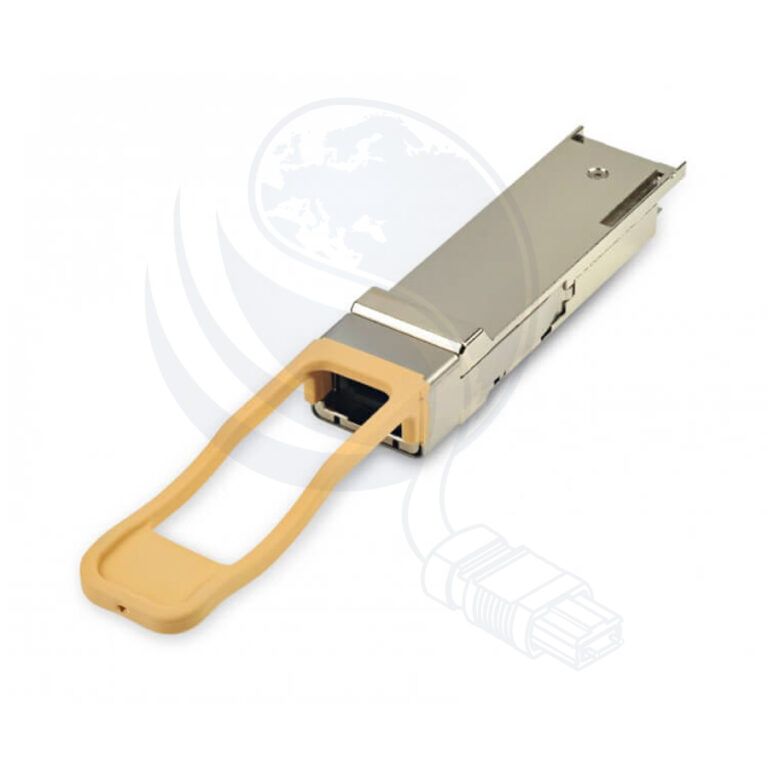

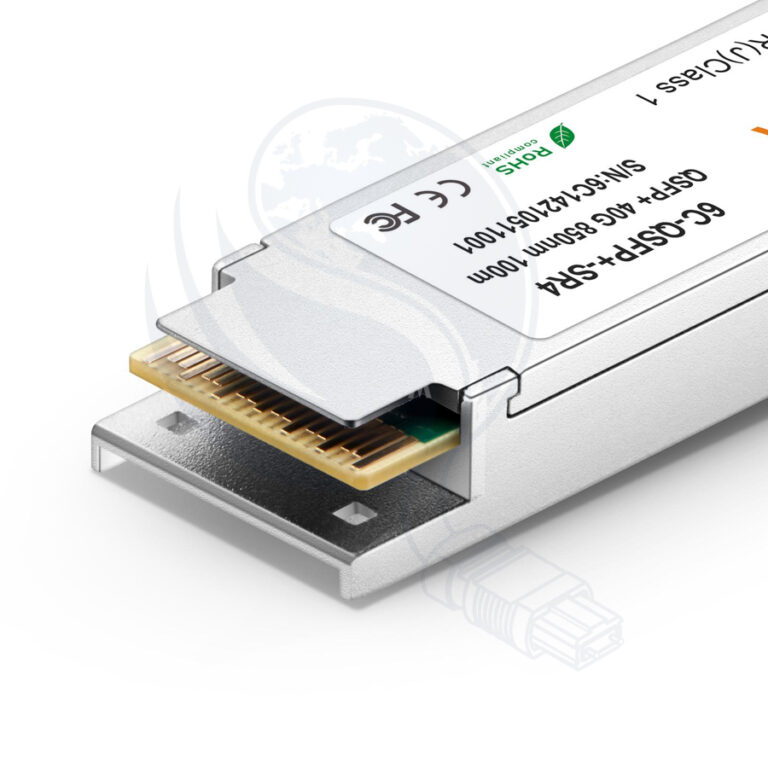

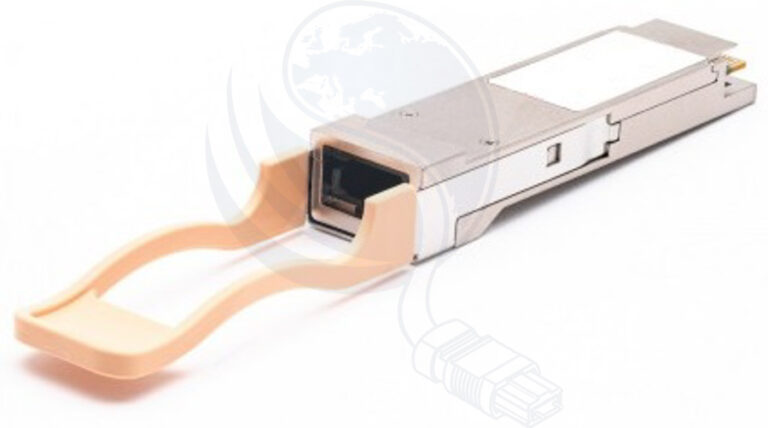

SFP+ 40GB Multimode MM 300m
| PRODUCT | SFP, XFP, QSFP, SFPS (SFP+) |
|---|---|
| SPEED | ET (100M), G1 (1GB), G2 (2GB), G5 (5GB), G6 (6GB), GX (10GB), G2X (20GB), G4X (40GB), GXX (100GB) |
| TYPE | RJ (RJ45), SM (Single-mode), MM (Multimode), BIDI (Bi-Directional), WDM, DDMI, DWDM, CWDM |
| DISTANCE | 100 (100m), 300 (300m), 500 (500m), 2 (2km), 10 (10km), 20 (20km), 40 (40km), 80 (80km), 120 (120km) |
| CODING TYPE | CIS (Cisco), HP, JP (Juniper), EX (Extreme), Leave empty if no coding |
Tətbiq sahəsi
- 40G Ethernet
- Infiniband QDR
- Fiber channel
- Compliant to IEEE 802.3ba
- Compliant to SFF-8436
- RoHS Compliant
Texniki
| Parameter | Symbol | Min. | Max | Unit |
| Transmitter | ||||
| Center Wavelength | λ0 | 840 | 860 | nm |
| Average Launch Power each lane | – | -7 | 1 | dBm |
| Spectral Width (RMS) | σ | – | 0.65 | nm |
| Optical Extinction Ratio | ER | 3 | – | dB |
| Average Launch Power off each lane | Poff | – | -30 | dBm |
| Transmitter and Dispersion penalty each lane | TDP | – | 3.5 | dB |
| Optical Return Loss Tolerance | ORL | – | 12 | dB |
| Output Eye Mask | Compliant with | IEEE 802.3ba | ||
| Receiver | ||||
| Receiver Wavelength | λin | 840 | nm | |
| Rx Sensitivity per lane | RSENS | – | dBm | |
| Input Saturation Power (Overload) | Psat | 2.4 | dBm | |
| Receiver Reflectance | Rr | – | dB | |
| LOS De-Assert | LOSD | – | dBm | |
| LOS Assert | LOSA | -30 | dBm | |
| LOS Hysteresis | – | 0.5 | dBm |
