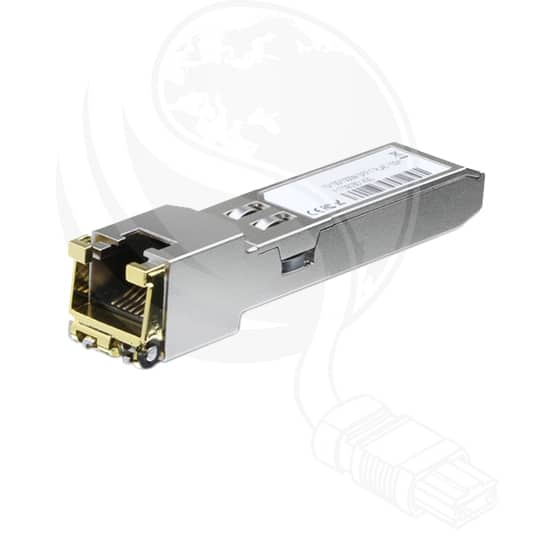

SFP Transceiver – Copper

PRODUCT	SFP, XFP, QSFP, SFPS (SFP+)
SPEED	ET (100M), G1 (1GB), G2 (2GB), G5 (5GB), G6 (6GB), GX (10GB)
TYPE	RJ (RJ45), SM (Single-mode), MM (Multimode), BIDI (Bi-Directional), WDM, DDMI, DWDM, CWDM
DISTANCE	500 (500m), 2 (2km), 10 (10km), 20 (20km), 40 (40km), 80 (80km), 120 (120km)
CODING TYPE	CIS (Cisco), HP, JP (Juniper), EX (Extreme), Leave empty if no coding

Təhlükəsiz alış-veriş

Texniki

	Symbol	Min.	Type	Max.	Unit	Notes
Line Frequency	fL		125		MHz	5-level encoding, per IEEE 802.3
Tx Output Impedance	Zout, TX		100		Ohm	Differential, for all frequencies between 1MHz and 125MHz
Rx Input Impedance	Zin, RX		100		Ohm	Differential, for all frequencies between 1MHz and 125MHz
Single Ended Data Input Swing	Vinsing	250		1200	mV	Single ended
Single Ended Data Output Swing	Voutsing	350		800	mV	Single ended
Rise/Fall Time	Tr, Tf		175		psec	20%-80%
Tx Input Impedance	Zin		50		Ohm	Single ended
Rx Output Impedance	Zout		50		Ohm	Single ended
Data Rate	BR	10		1000	Mb/sec	IEEE 802.3 compatible
Cable Length	L			100	m	Category 5 UTP. BER
I2C Clock Rate		0		100,000	Hz
Operating Temp.T12-02-2 T12-02-2E T12-02-2A	Tcase Tcase Tcase	0 -10 -40		70 80 85	⁰C ⁰C ⁰C
