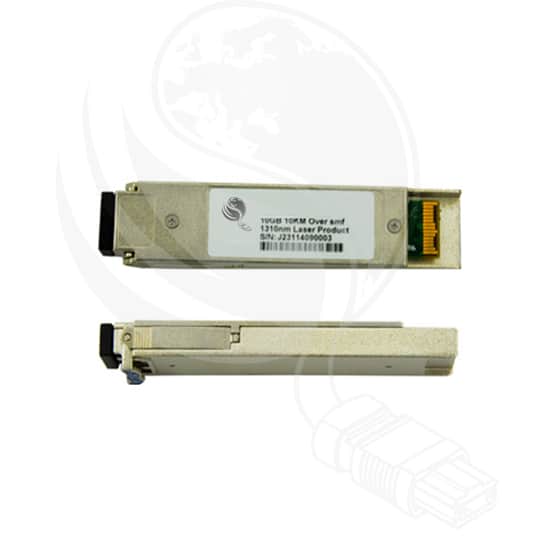

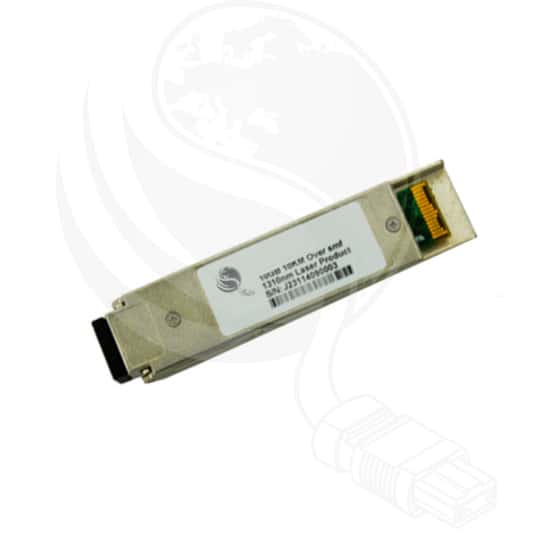

SFP Transceiver – XFP BIDI Optical
| PRODUCT | SFP, XFP, QSFP, SFPS (SFP+) |
|---|---|
| SPEED | ET (100M), G1 (1GB), G2 (2GB), G5 (5GB), G6 (6GB), GX (10GB) |
| TYPE | RJ (RJ45), SM (Single-mode), MM (Multimode), BIDI (Bi-Directional), WDM, DDMI, DWDM, CWDM |
| DISTANCE | 500 (500m), 2 (2km), 10 (10km), 20 (20km), 40 (40km), 80 (80km), 120 (120km) |
| CODING TYPE | CIS (Cisco), HP, JP (Juniper), EX (Extreme), Leave empty if no coding |
Tətbiq sahəsi
- 10GBASE-LR/LW 10G Ethernet
- SONET OC-192 SR-1
- SDH STM I-64.1
- 1200-SM-LL-L 10G Fibre Channel
- 10GBASE-LR/LW with FEC
- 1200-SM-LL-L 10G Fibre Channel with FEC
Texniki
| Supply Voltage | Vcc 0 ~ 3.6 V |
| Data Rate | 9.95 ~ 11.3 Gbps |
| Average Output Power | -8 Min ~ 0.5 Max dBm |
| Extinction Ratio | ER 3.5 dB |
| TX Disable | Vd 2.0Vcc V |
| TX Enable | Ven 0 ~ 0.8V |
| TX Fault Assert | VIf 2.0 Vcc HOST V |
| TX Fault De Assert | Vin 0 ~ 0+0.8 V |
| LOS De-Assert | LOSD -16dBm |
| LOS Assert | LOSA -20dBm |
| LOS Hysteresis | 0.5 ~ 4.5 dB |
| Data Output Swing Differential | Vout 340 ~ 850 mV |
| Temperature | -10⁰C ~ +85⁰C |
