Divar tipli kabinlər (İndoor Wall)

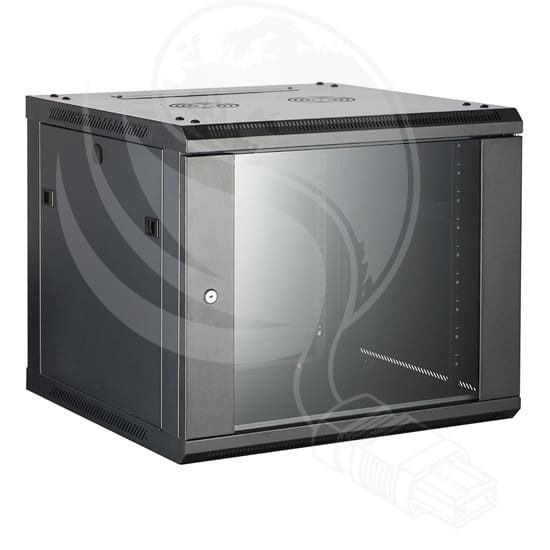

Wall Cabinet – Model 04



USE IWR (Indoor Wall Cabinet)
MODEL 04
DEPTH 64 (600x450mm), 66 (600x600mm)
UNITS 06, 09, 12, 15, 18, 21
COLOUR BLK, GRY
DOOR/REAR GF (Glass Front/Full Rear)
Təhlükəsiz alış-veriş
  • Visa Card
  • MasterCard
  • PayPal
  • Apple Pay
Categories: ,

Tətbiq sahəsi



  • Small & Home networks
  • LAN, MAN and WAN applications
  • CATV – Cable television
  • Fibre-To-The-Home (FTTH)

Texniki



Parts Materials Surface

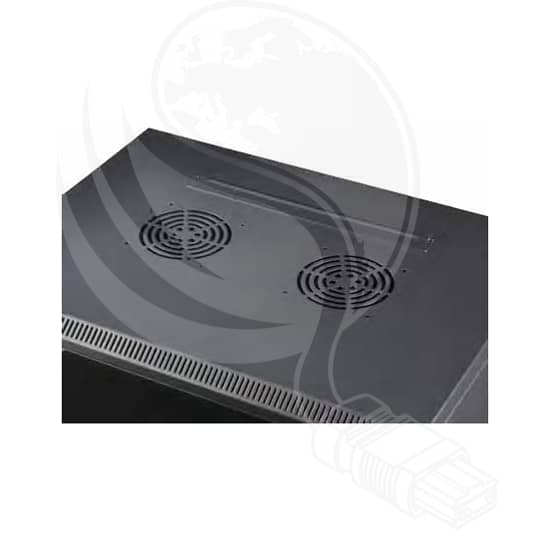

Top Cover SPCC Cold-Rolled Steel 1.0mm Powder Coated/Vented Front & Sides
Frame SPCC Cold-Rolled Steel 1.0mm Powder Coated
Front Door Toughened Glass 5m/SPCC Cold-Rolled Steel 1.2mm Powder Coated/Vented Sides (Optional)
Side Panel SPCC Cold-Rolled Steel 1.1mm Powder Coated/Vented (Optional)

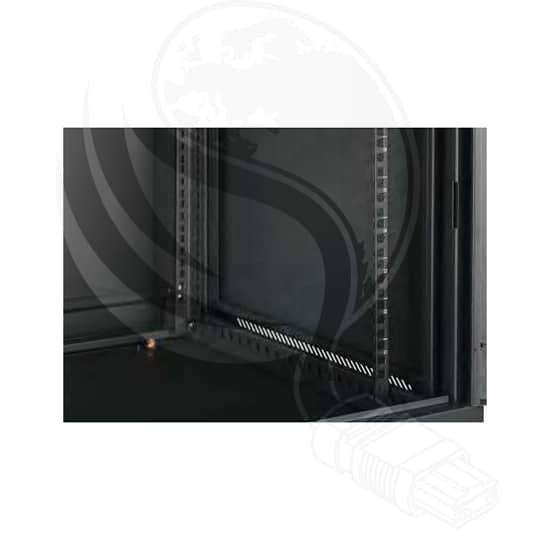

Rail SPCC Cold-Rolled Steel 1.4mm Powder Coated
L-Shape Fixed Shelf SPCC Cold-Rolled Steel 1.1mm Powder Coated
Back Panel SPCC Cold-Rolled Steel 1.4mm Powder Coated
Beam SPCC Cold-Rolled Steel 1.4mm Powder Coated
Bottom SPCC Cold-Rolled Steel 1.1mm Powder Coated/Vented Front & Sides

Məlumat cədvəli
